BOSS

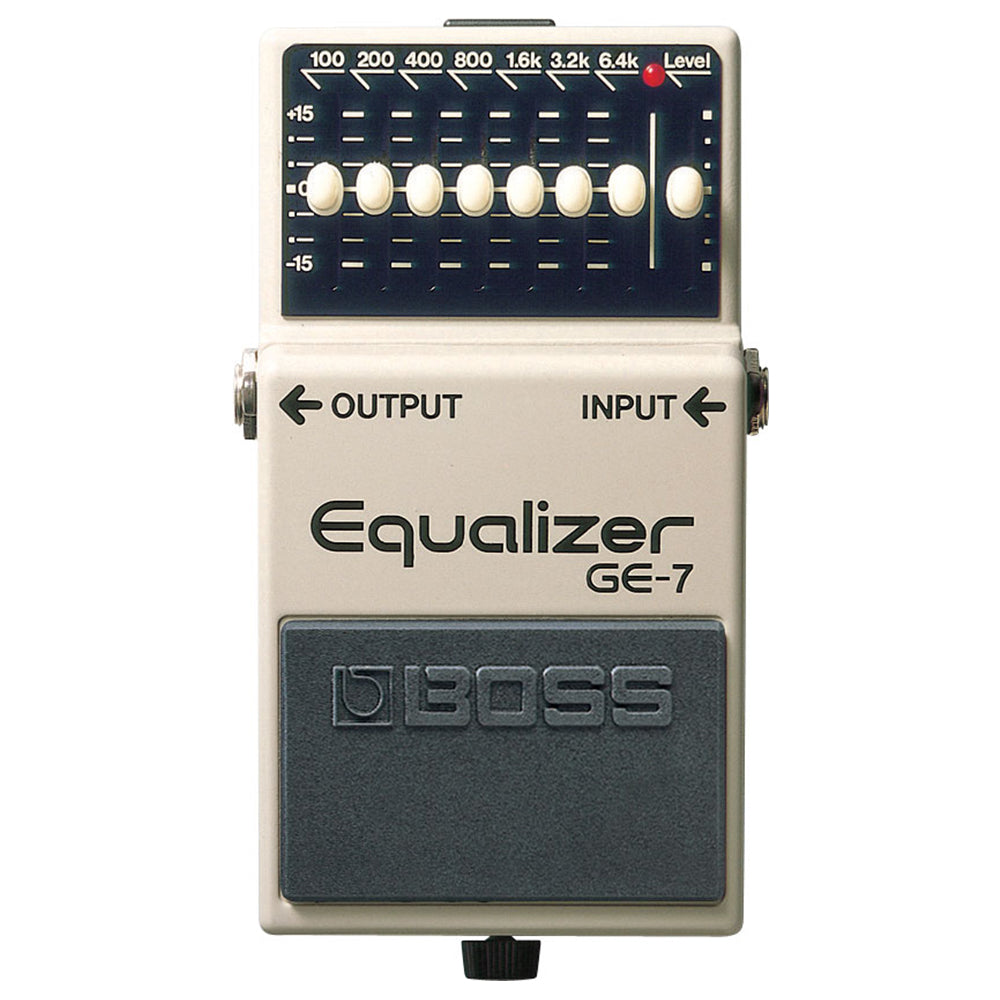

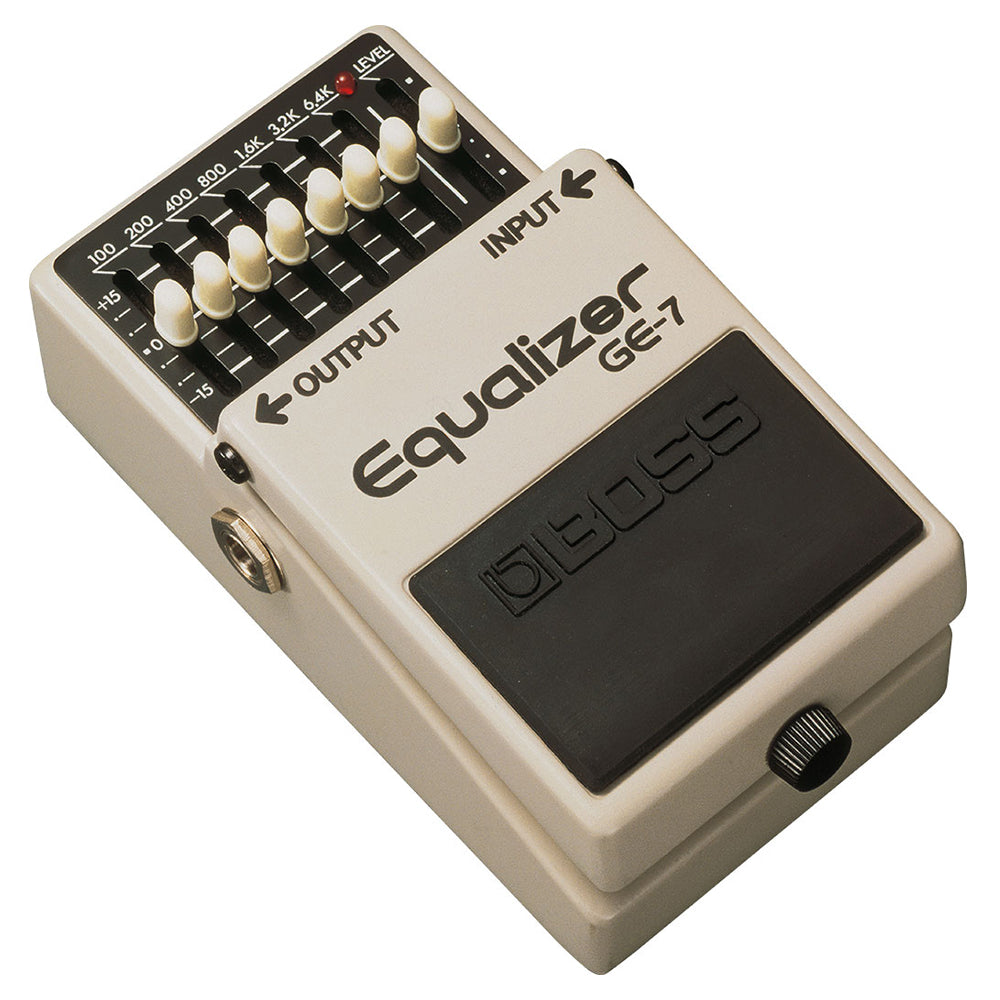

Boss GE-7 7-band Equalizer Guitar Pedal

RM520.00 MYR
or up to 3 interest-free payments of RM173.33 MYR with More info
RM520.00 MYR
Sale Sold out

Powerful 7-Band EQ!

The GE-7 Equalizer pedal offers seven bands of EQ ranging from 100Hz to 6.4kHz, ideal for guitar sounds, with boost/cut of +/- 15dB per band. This lets you completely control your sound and eliminate unwanted feedback, particularly when connected after a distortion effect.





  • Compact EQ pedal with 7 bands of adjustable EQ sliders
  • Allows for boost/cut of up to +/- 15dB per band
  • Perfect as a "boost" pedal for solos, creating an alternate sound, or for eliminating feedback

    •

    Specifications
    Nominal Input Level
    -20 dBu
    Input Impedance
    1 M ohm
    Nominal Output Level
    -20 dBu
    Output Impedance
    1 k ohm
    Recommended Load Impedance
    10 k ohm or greater
    Bypass
    Buffered bypass
    Controls
    Level Control knob
    Equalizer Control knob
    100, 200, 400, 800, 1.6 k, 3.2 k, 6.4 kHz
    Pedal switch
    Indicator
    CHECK indicator (Serves also as battery check indicator)
    Connectors
    INPUT jack: 1/4-inch phone type
    OUTPUT jack: 1/4-inch phone type
    DC IN jack
    Power Supply
    Carbon-zinc battery (9 V, 6F22)
    Alkaline battery (9 V, 6LR61)
    AC adaptor (PSA series: sold separately)
    Current Draw
    30 mA
    Expected battery life under continuous use
    Carbon: Approx. 9 hours
    Alkaline: Approx. 19.5 hours
    *These figures will vary depending on the actual conditions of use.
    Accessories
    Owner's Manual
    Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
    Carbon-zinc battery (9 V, 6F22)
    Options (sold separately)
    AC adaptor: PSA series
    Size and Weight
    Width
    73 mm
    2-7/8 inches
    Depth
    129 mm
    5-1/8 inches
    Height
    59 mm
    2-3/8 inches
    Weight (including battery)
    400 g
    15 oz
    * 0 dBu = 0.775 Vrms
    *The specifications are subject to change without notice.
