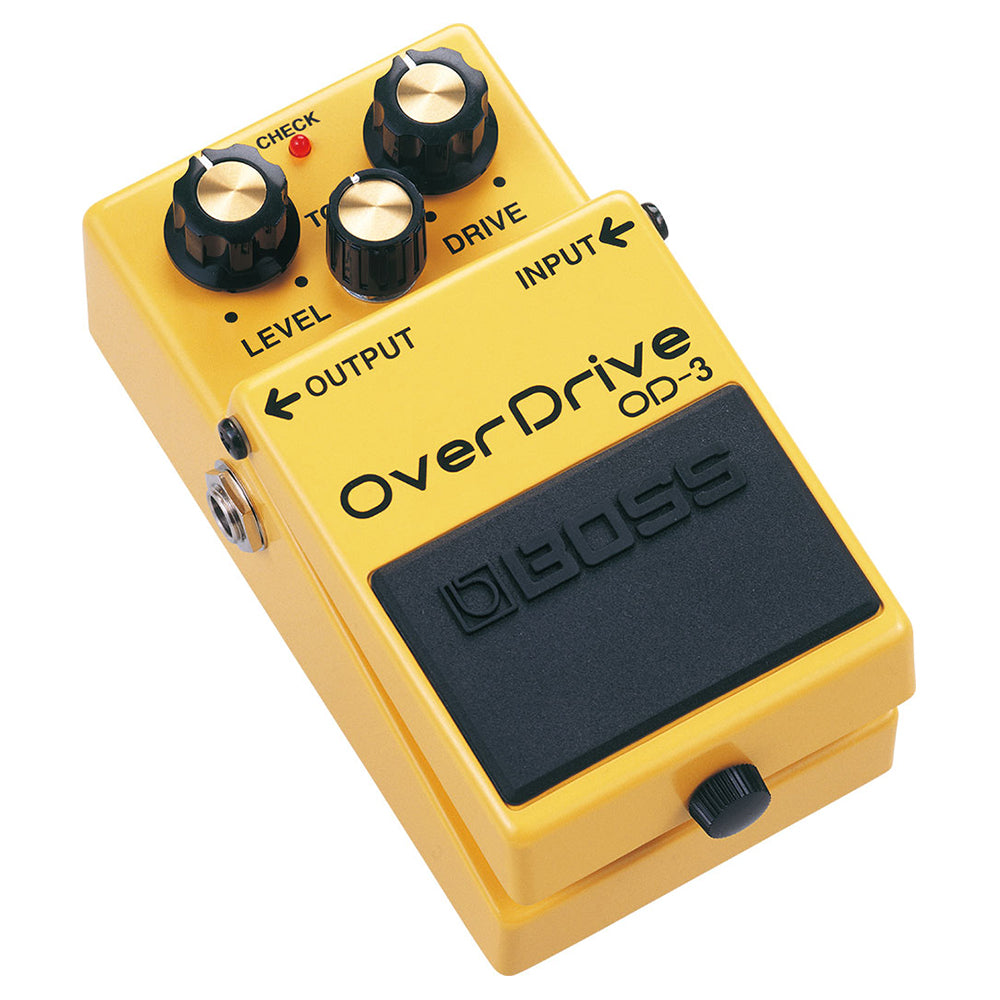

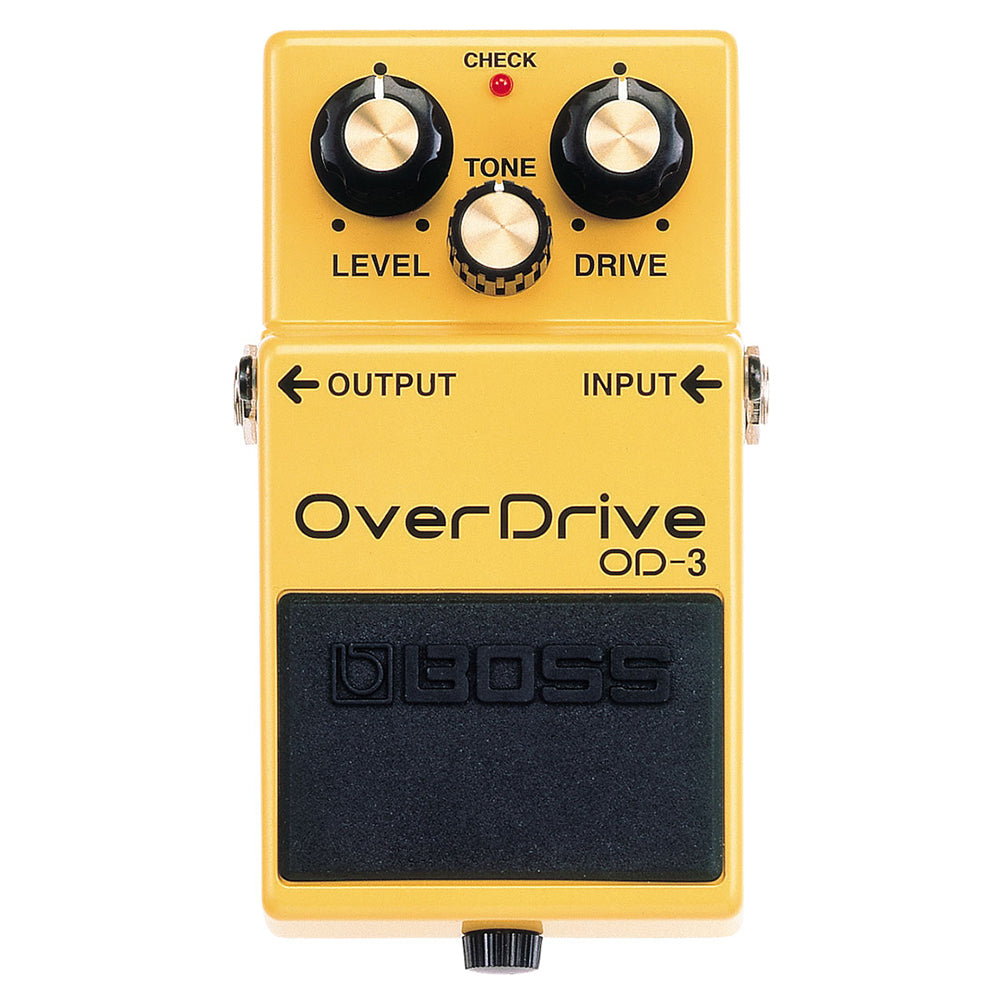

Boss OD-3 Overdrive Guitar Effects Pedal

RM489.00 MYR
or up to 3 interest-free payments of RM163.00 MYR with More info
RM489.00 MYR
Sale Sold out

Natural Overdrive with Endless Sustain!

Built in the tradition of the legendary BOSS overdrives, the OD-3 OverDrive pedal gives guitarists a greatly expanded range of smooth overdrive tones and improved response while staying true to the original.





  • Dual-Stage Overdrive Circuit offers a level of sustain and compression unmatched by any overdrive pedal
  • Increased dynamics yield a "bigger" sound than any previous BOSS overdrive pedal
  • Dynamic, non-muffled tones reminiscent of classic overdriven "stack" amps
  • Straightforward Drive, Tone and Level controls

    •

    SPECS-

    Nominal Input Level
    -20 dBu
    Input Impedance
    1 M ohm
    Nominal Output Level
    -20 dBu
    Output Impedance
    1 k ohm
    Recommended Load Impedance
    10 k ohms or greater
    Bypass
    Buffered bypass
    Controls
    DRIVE knob
    TONE knob
    LEVEL knob
    Pedal switch
    Indicator
    CHECK indicator (Used for indication of check battery)
    Connectors
    INPUT jack: 1/4-inch phone type
    OUTPUT jack: 1/4-inch phone type
    DC IN jack
    Power Supply
    Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
    AC adaptor (PSA series: sold separately)
    Current Draw
    15 mA
    Expected battery life under continuous use
    Carbon: Approx. 34.5 hours
    Alkaline: Approx. 56 hours
    *These figures will vary depending on the actual conditions of use.
    Accessories
    Owner's manual
    Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
    Carbon-zinc battery (9 V, 6F22)
    Options (sold separately)
    AC adaptor: PSA series
    Size and Weight
    Width
    73 mm
    2-7/8 inches
    Depth
    129 mm
    5-1/8 inches
    Height
    59 mm
    2-3/8 inches
    Weight (including battery)
    370 g
    14 oz
    * 0 dBu = 0.775 Vrms
    *The specifications are subject to change without notice.
