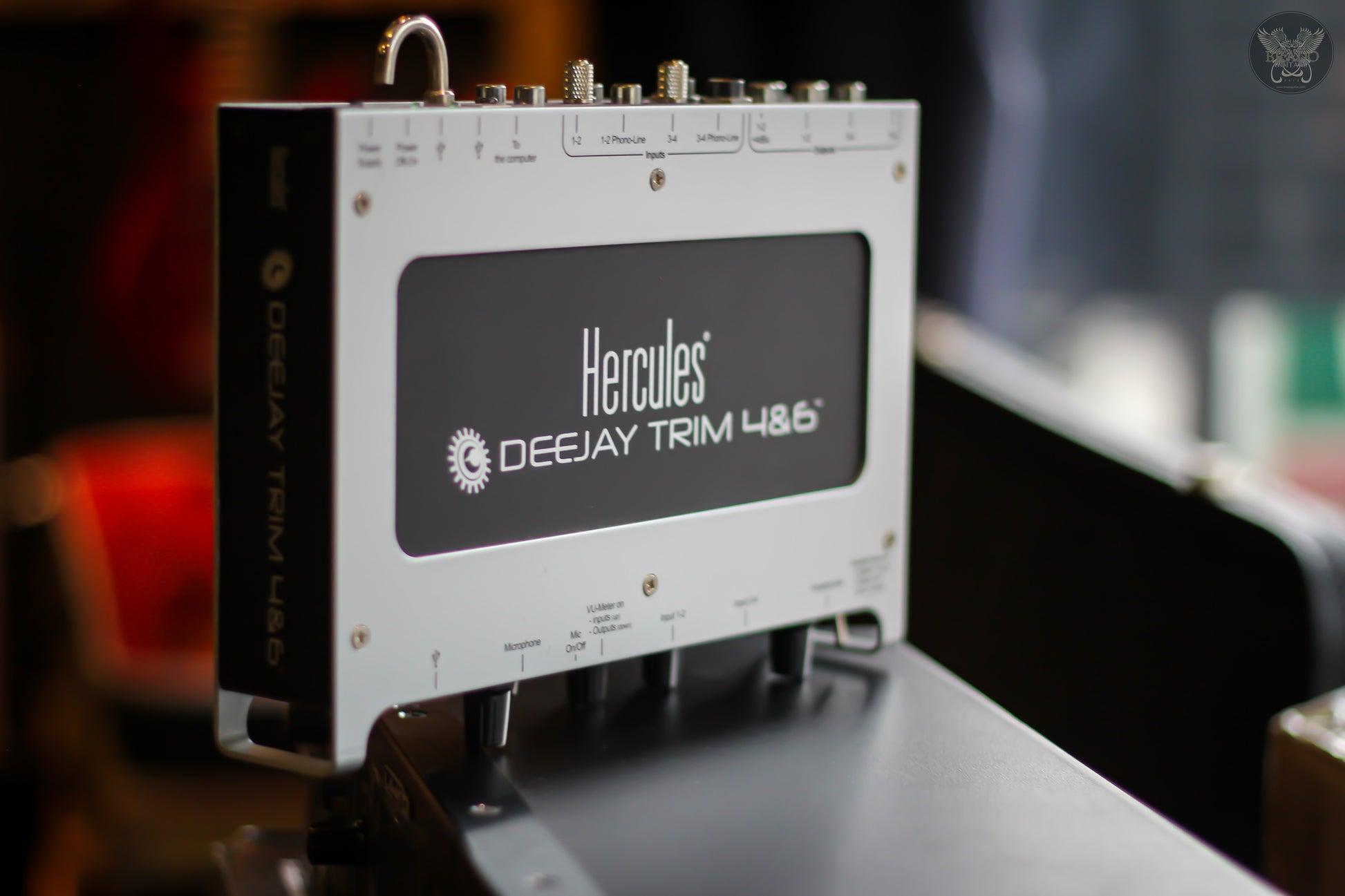

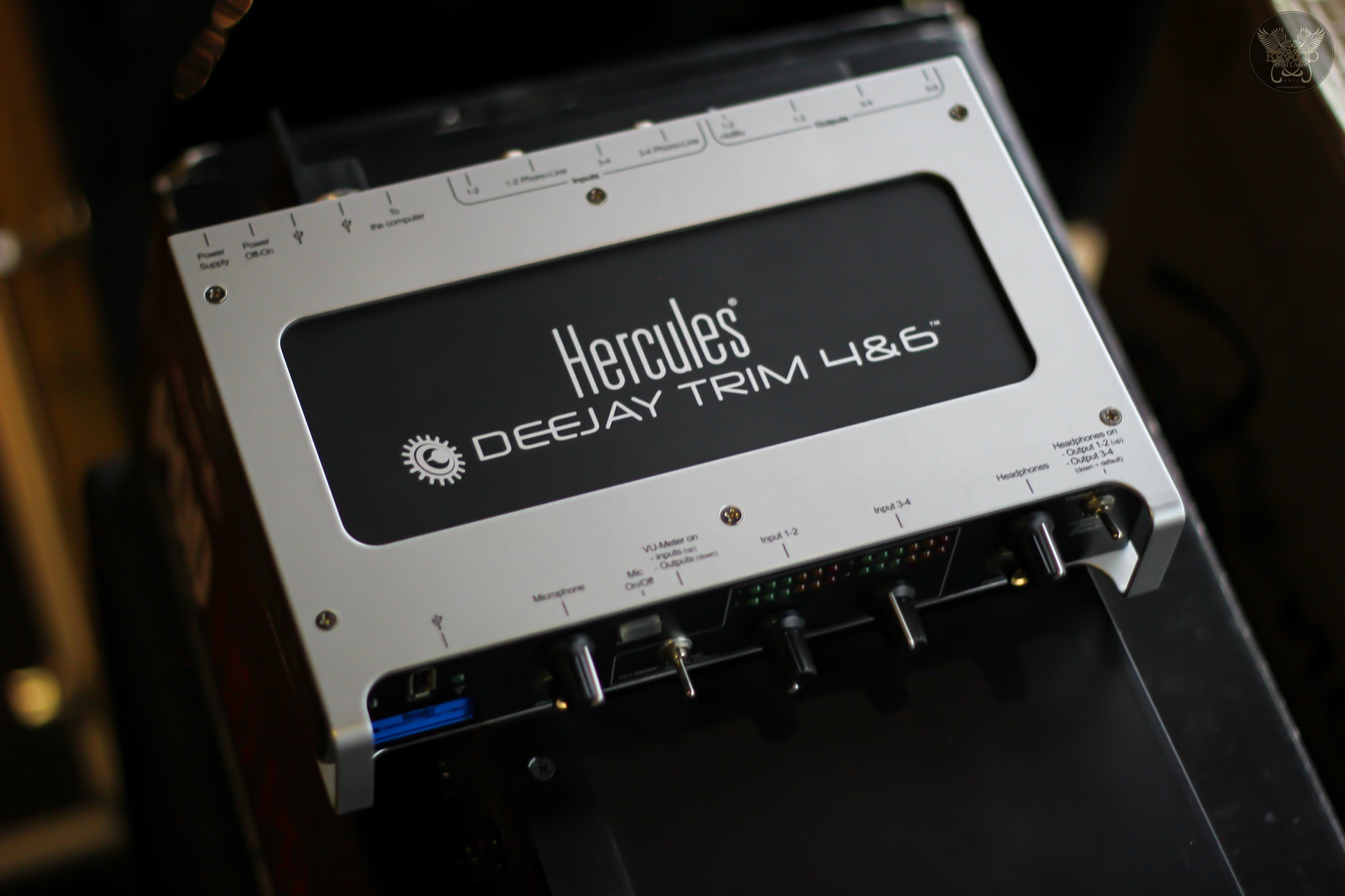

The Hercules DeeJay TRIM 4&6 USB Interface bridges your traditional DJ setup with a Mac or PC desktop or laptop computer. The interface features 4-channel inputs and outputs, headphone and microphone inputs, a USB output, and level controls for each channel. Effortlessly mix WAV and MP3 files within the software, or using a traditional turntable / CD deck and mixer setup (software not included). Cue, scratch and adjust pitch of up to 4-channels of audio files just like vinyl.
Nightclub, mobile and bedroom laptop DJs will find this package a well suited solution for creating custom mixes with audio files.
Key Features
- DeeJay TRIM 4&6 USB Interface
- VirtualDJ LE Software
- 4-Audio Input / Output Channels
- Control and Mix Audio Files
- External Turntable and CD Control
- Mac and Windows Compatible
2 Audio Modes
4-In / 4-Out
2-iIn / 6-Out (to export mixes to an external mixer)
Ready for Professional Gear
Outputs: two +4dBu 1/4" jacks for PA amplifiers (and six -10 dBv RCA plugs for mixers)
Inputs: preamplifiers for both low-level sources (Phono turntables) and high-level sources (e.g. Pioneer CDJ )
Built-in High-Speed USB Hub
Connect your DJ controller
Power adapter included: no USB bus power fluctuations risk altering the sound
Multi-TT USB 2.0 hub: high performance on all ports

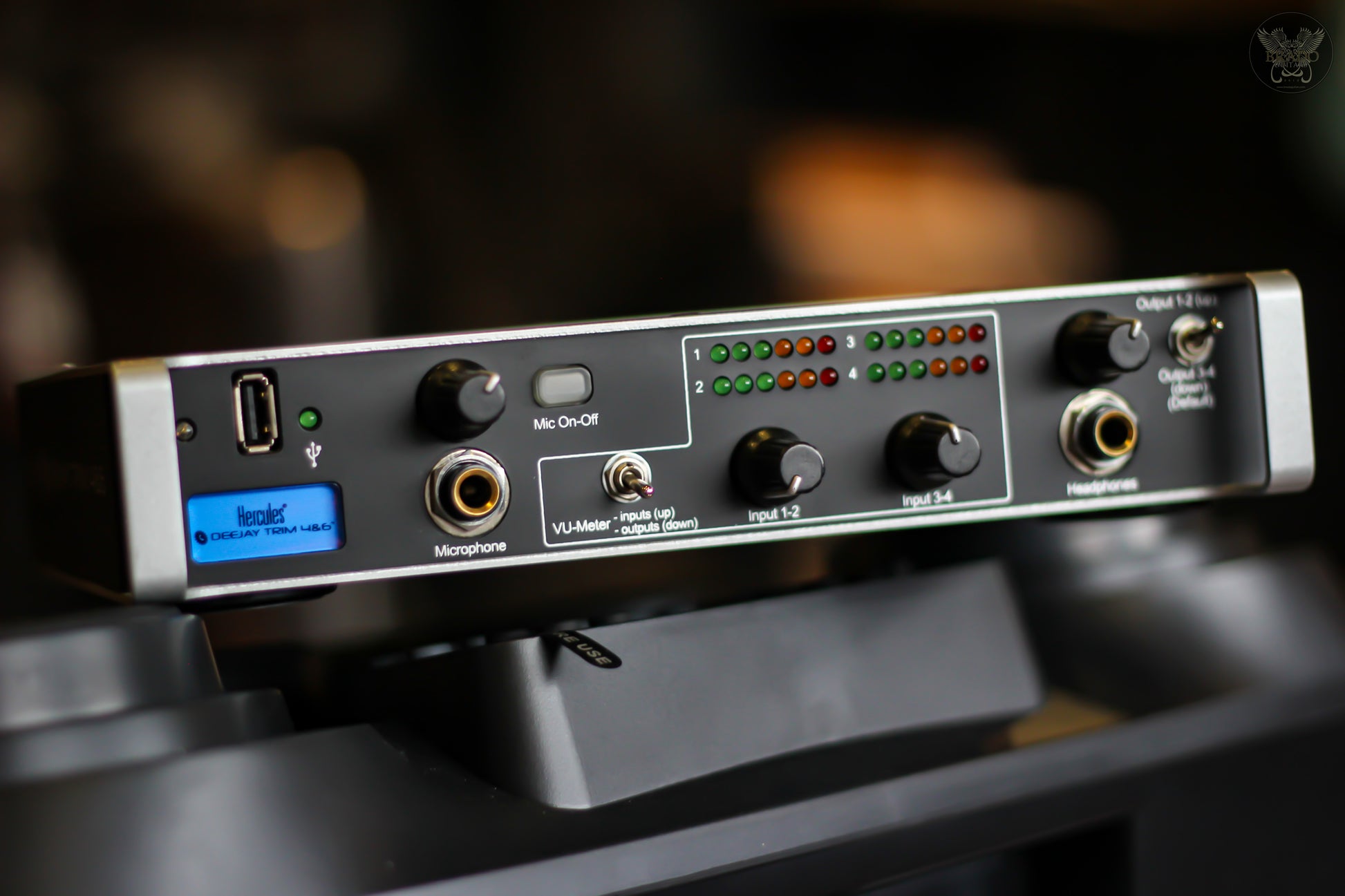

View-Meters
Monitor inputs & outputs
6 LEDs per channel: view the status of each channel
User-Friendly
Solid metal casing
View-meters on front: you can see levels both while sitting and standing up

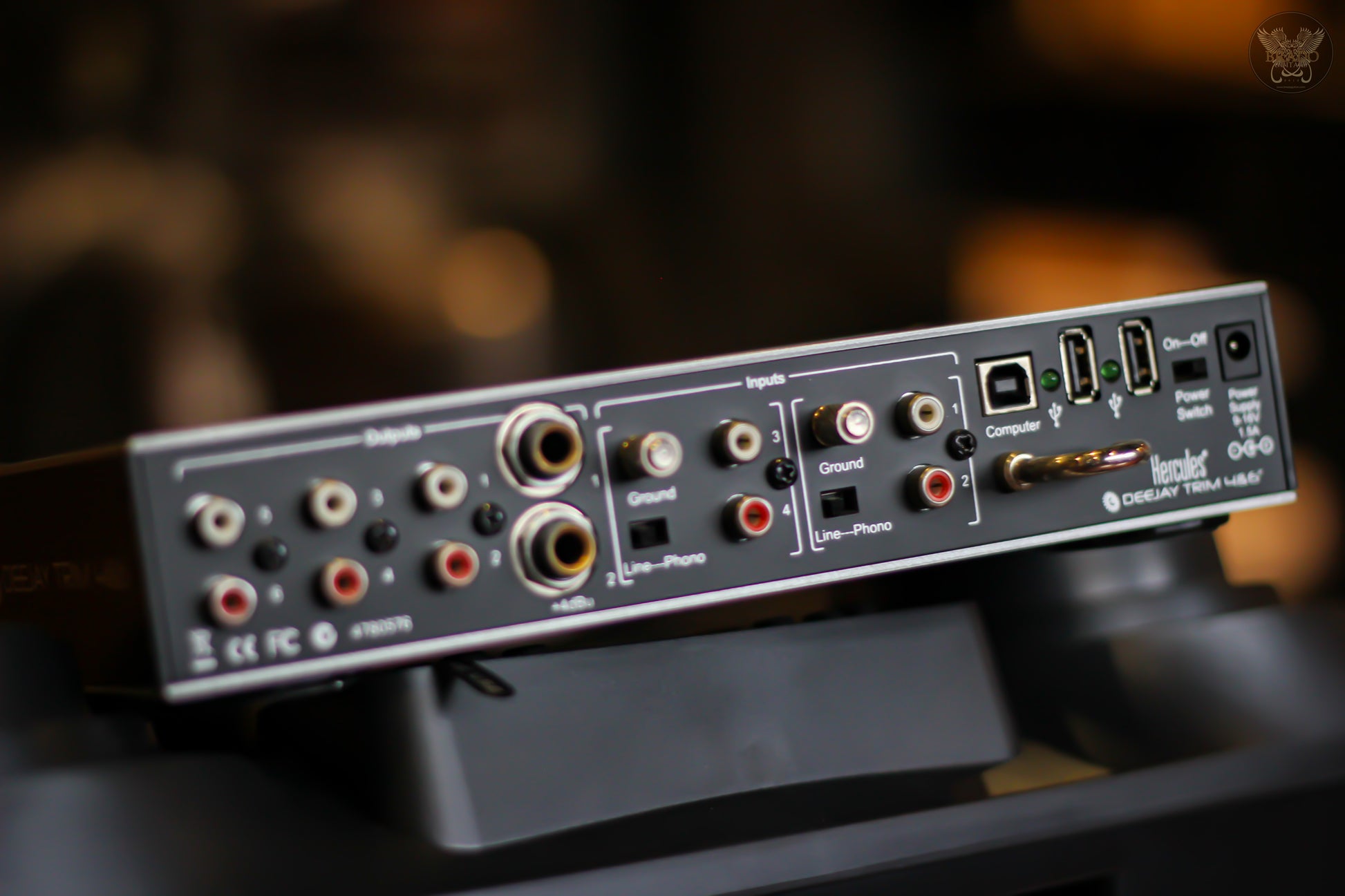

Plugs located on rear panel (except headphones, microphone and 1 USB port): your interface won't look like a spider once all ports are connected
4-Channel Output
For internal mixing: play the mix on outputs 1-2 / preview on outputs 3-4
For external mixing: assign outputs 1-2 to left deck, outputs 3-4 to right deck and mix on an external mixer
4-channel input (Line & Phono level)
Line level: connect external MP3 / CD players and mix them with computer tracks
Phono level: connect vinyl turntables and mix them with computer audio files
Headphones Output for Monitoring
Stereo 1/4" jack output for connecting headphones, featuring a volume button
Set the monitored channels: outputs 3-4 for preview / outputs 1-2 for the mix
Microphone Input with Talk-over Function
Mono 1/4" jack input for connecting a microphone
Talk-over mode (mix the microphone input with background music)
Preamplifiers on 4-channel inputs
2 stereo preamplifiers to adjust the volume of the 4-channel analogue inputs:
2 buttons and 4 view-meters to set the volume of analogue inputs
Supports high-level sources (e.g. Pioneer CD players) and phono turntables
USB 2 High-Speed Hub with Power Adapter
3-port high-speed USB hub to plug your DJ controller and external storage device
Power adapter included
