Electro-Harmonix

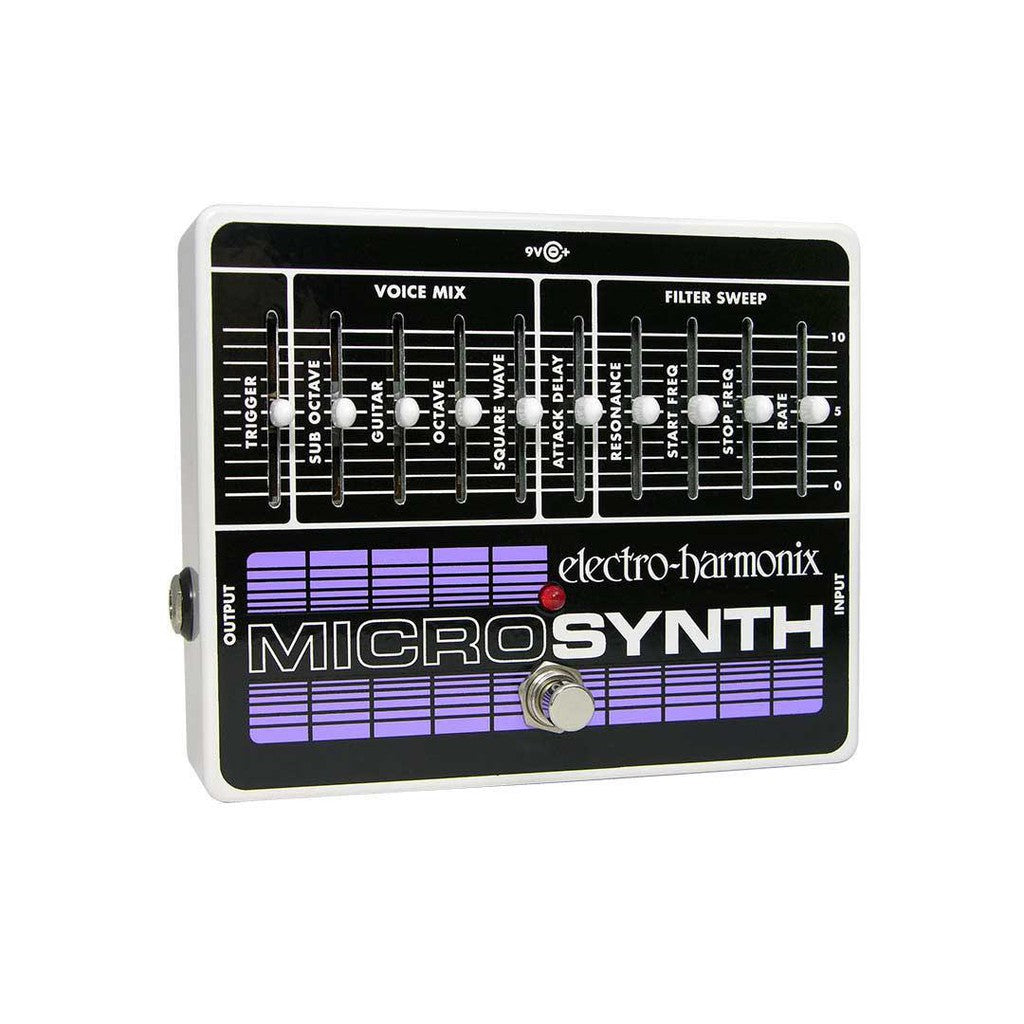

Electro-Harmonix Micro Synthesizer Guitar Effects Pedal

Regular price RM1,160.00 MYR
or up to 3 interest-free payments of RM386.67 MYR with More info
Regular price Sale price RM1,160.00 MYR
Sale Sold out

Micro Synth



The EHX Micro Synth can create some of the most popular synthesizer textures with its four voices: GUITAR, OCTAVE, SUB OCTAVE AND SQUARE WAVE, which are completely independent and fully mixable. The MICRO SYNTH can modify these signals with envelope control for a variety of “bowed” or “blown” sounds. In addition, a sophisticated swept filter control allows highly variable frequency adjustments to be applied to the overall output signal. When combined, these controls offer the user a creative capability that is virtually limitless.

Compact ten-slider layout lets the sonically adventurous guitarist dial in a virtually limitless array of analog synthesizer sounds: from percussive stabs to backwards-sounding bowed effects.

  • True bypass
  • All analog design
  • 3-pole analog resonant filter
  • 4 voice mixer section mixes: sub octave, original, octave up and square wave
  • Square wave voice can be used as a distortion tone
  • Start, stop filter frequency sliders with adjustable rate for full control over the filter’s sweep direction and speed
  • Adjustable filter resonance control
  • Adjustable attack time control for fading-in notes
  • Tough and compact die-cast chassis
  • Power adapter included


SPECIFICATIONS

Circuit
Analog
Bypass
True Bypass
Audio
Mono
Power Supply
9.6VDC-200mA power adapter included
Dimensions (in)
5.75 x 4.75 x 2.5
Current Draw
55mA
Year Released
2008
UPC
683274010793
