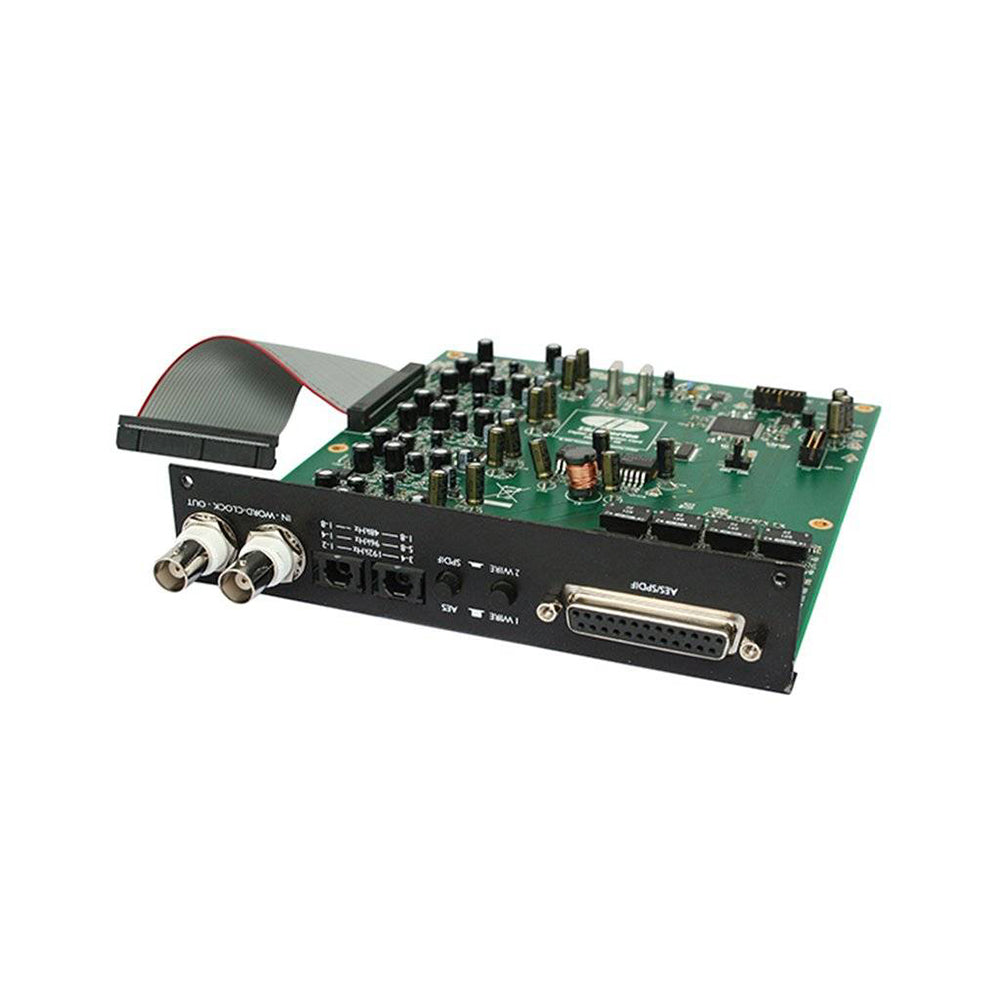

Focusrite ISA 428/828 A/D Card 192kHz 8 Ch A/D Option for ISA428, 828

The ISA eight channel 192kHz A-D converter outperforms every other converter yet devised, and was the first audio A-D converter to utilise Burr-Brown Pro Audio Amplifiers and flagship PCM4220 A-D converter chips. With cutting-edge conversion technology seated within Focusrite custom analogue circuitry, the card delivers unparalleled performance; specifications include a dynamic range of 122dB and jitter less than 250 picoseconds. More information about Focusrite's ISA A-D converters can be found on the right.

The card can be retrofitted to an ISA428, ISA428 MkII or ISA828 at any time and, thanks to its convenient 25-pin D-Type connector, integrates seamlessly with Pro Tools HD as well as other popular hard disk recorders and mixing desks.

All eight converters are always available with this option, even when using the ISA428 and ISA428 MkII. When installed in one of these four-channel mic preamps, the the extra 4 converters of the A-D card are fed by four XLR inputs on the back labeled "ADC Input".

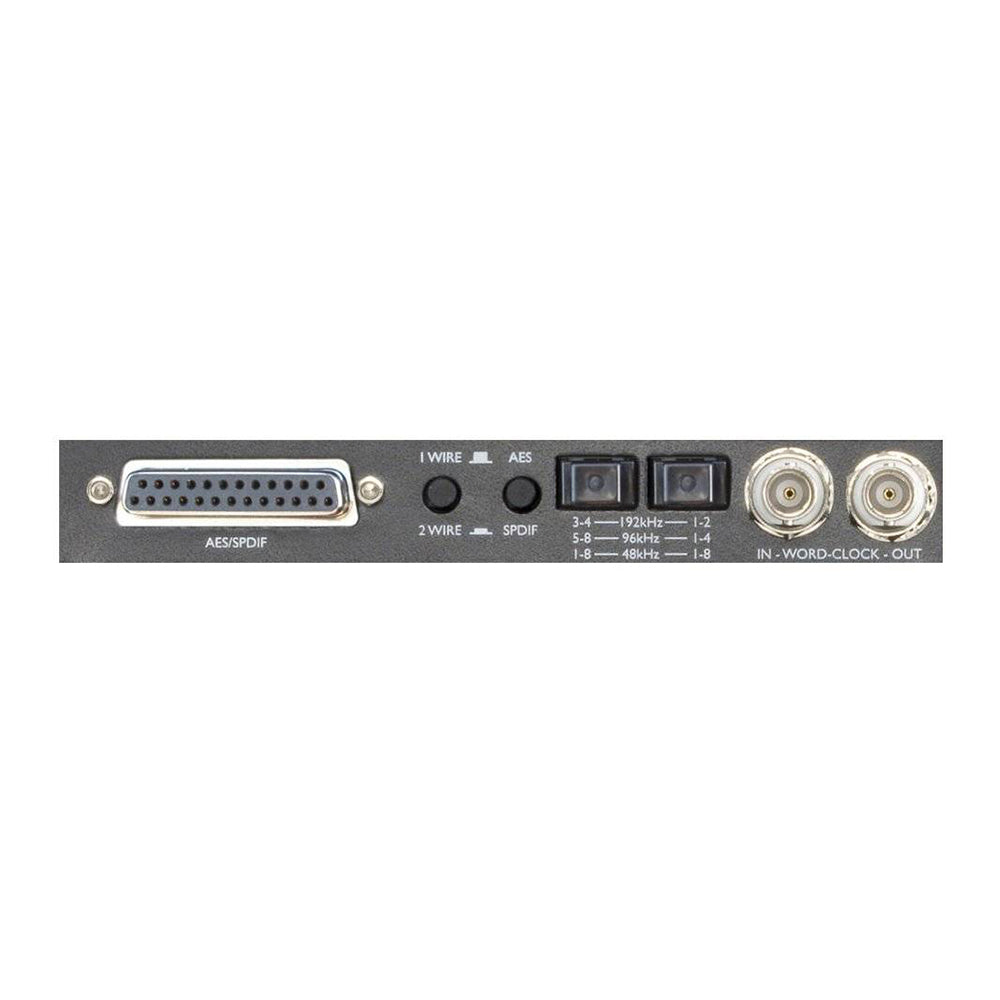

Digital formats include an eight-channel single/dual wire AES/EBU and S/PDIF output, as well as an eight-channel ADAT lightpipe (SMUX/SMUX2) output. Word clock i/o is provided via dedicated BNC connectors.
