JHS Double Barrel V4 2-in-1 Dual Overdrive Guitar Effects Pedal
Couldn't load pickup availability
JHS Double Barrel V4 2-in-1 Dual Overdrive Guitar Effects Pedal
The Double Barrel V4 is for the player who needs a versatile but transparent overdrive at medium and light gain levels. You won’t find face-melting distortion here, but you will find overdrive with the character and stacking abilities to cover almost any tonal need, packing a one-two punch that is unrivaled.
"EVERYTHING LOW-TO-MEDIUM GAIN" PEDAL AND IT JUST GOT BETTER!
The right side is our brand new Moonshine V2, which is a highly unique and massively tweaked version of the most famous overdrive ever created, housed in a little green enclosure. The Moonshine V2 has the classic mid-heavy tones that you’d expect but with more gain, volume, and tones than you ever thought possible. The Moonshine V2 has the same core sound as the Version 1 but we have added a new “Clean” knob to blend in the perfect amount of clean signal with your overdrive signal. The order toggle lets you choose which circuit is first in the chain. When the toggle is flipped to the right side, the Moonshine is first. When the toggle is flipped to the left side, the Morning Glory is first.
The left side of the Double Barrel is our best-selling Morning Glory V4 overdrive. Transparent and open tones lurk inside this circuit, as well as the new hi-gain toggle with Red Remote capability. Just plug in the JHS Pedals Red Remote into the “Remote Gain” jack with a standard patch cable and you can switch the “Gain” toggle on the fly for even more tonal options. You now have five on-the-fly overdrive options to choose from in the Double Barrel V4!
STACKING FOR DAYS
When these two circuits are stacked, something magic happens. Tones that are original and fresh come with ease, as well as added flexibility thanks to the “order switching” toggle.
- Endless overdrive tones from low to medium gain
- Updated versions of the Moonshine and Morning Glory
- Red Remote capability with the Morning Glory V4
- Order toggle to select the order of effects when stacking
We are convinced that this is one of the greatest 2-in-1 pedals ever made... seriously. If you're having problems getting the tones you want, just grab the Double Barrel V4 and you’ll find out how easy it is to hit the target!
VERSION HISTORY
V1 = Slightly darker cream powder coating; no toggle switches; six knobs total.
V2 = Color change to white; Order Toggle switch added; Morning Glory Bright Cut switch added.
V3 = 808 Gain Toggle added; shotgun icon changed slightly.
V4 = Updated Moonshine V2 on right side and Morning Glory V4 on the left side. Top-mount jacks.
THIS PEDAL REQUIRES STANDARD 9V DC CENTER NEGATIVE POWER, CONSUMES 108mA, AND MEASURES 4.7" x 3.7" x 1.5"

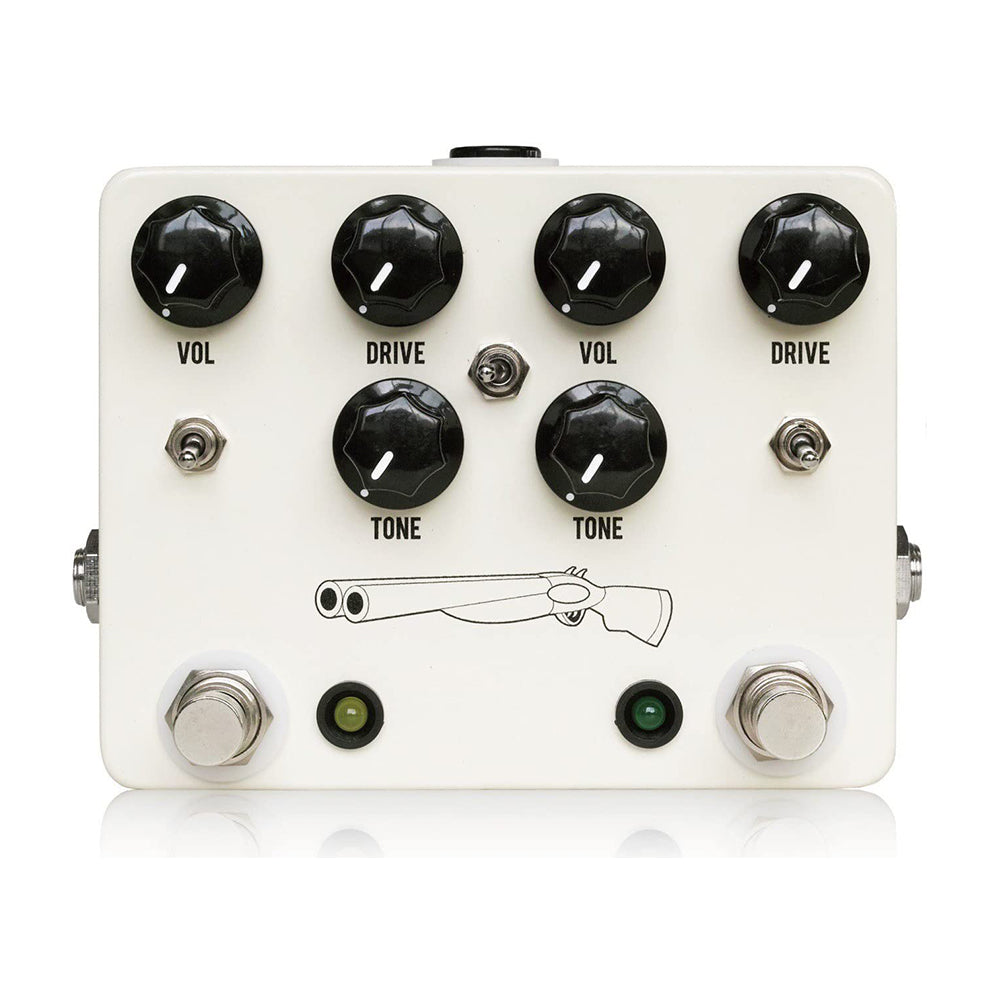

LEFT SIDE - MORNING GLORY V4
VOLUME - Controls the output volume. Left is less, right is more.
DRIVE - Controls the amount of drive or gain just like a tube amp being cranked at high volumes.
You will notice that as you turn up the drive, it also adds brightness. Left is less, right is more.
TONE - Controls the amount of brightness. Right is brighter, left is darker.
GAIN TOGGLE - Engages higher gain mode when flipped up. The LED will turn red to indicate
that you are in high gain mode.
BRIGHT CUT SWITCH - Switch on the left side of the pedal that cuts the highest frequencies in
case the overall tone is too bright.
RIGHT SIDE - MOONSHINE V2
VOLUME - Controls the output volume. Left is less, right is more.
DRIVE - Controls the amount of drive or gain just like a tube amp being cranked at high volumes.
Left is less, right is more.
TONE - Controls the amount of brightness. Right is brighter, left is darker.
BLEND - Adds in clean signal as you turn from left to right. All the way left is full overdrive, all the
way right is full clean.
PROOF TOGGLE - Down is a lower volume yet more saturated tone. Up is louder and more open
and crunchy.
ORDER TOGGLE - Toggle in the center between the controls for each side. The order toggle
allows you to select which circuit is first in the chain for different tones when stacking both sides. The
toggle points to whichever side is first in the chain. If switched to the right, the Moonshine is first. If
switched to the left, the Morning Glory is first.

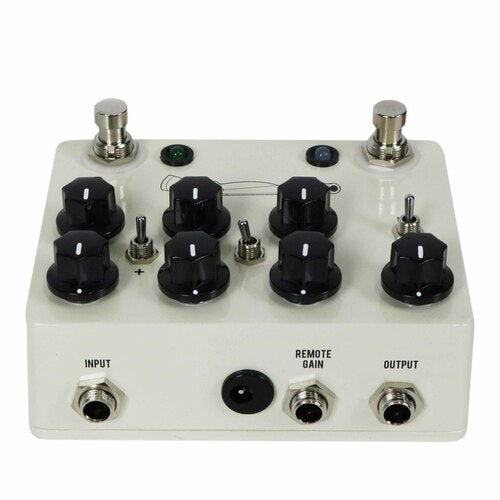

JACKS
INPUT - 1/4” jack on the top right side of the pedal.
OUTPUT - 1/4” jack on the top left side of the pedal.
REMOTE GAIN - 1/4” jack in between the input and output jacks. Plug in a Red Remote to
remotely switch the Morning Glory Gain toggle.
POWER - Uses 9V DC Negative Center. Do not use more than 9V DC. Your warranty will be voided.
108mA consumption.
