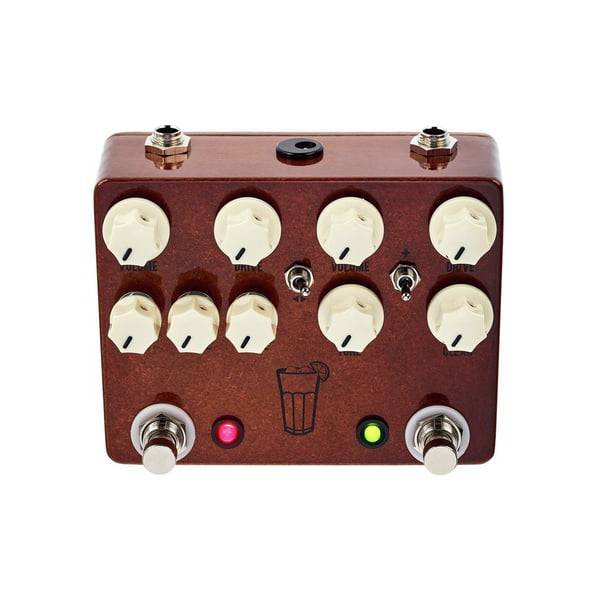

JHS Sweet Tea V3 2-in-1 Overdrive Guitar Effects Pedal

The Sweet Tea V3 is our "Everything Medium-to-High gain 2-in-1” and it covers all the bases from light breakup, blues, rock, heavy grind, and more.

The Sweet Tea V3 is for anyone who wants a versatile overdrive/distortion that covers all the bases you need plus more. You’ll find medium-to-high gain tones and the ability to stack for the perfect face-melting sounds.

MOONSHINE ON THE RIGHT

The right side is our brand new Moonshine V2 which is a highly unique and massively tweaked version of the most famous overdrive ever created, housed in a little green enclosure. The Moonshine V2 has the classic mid-heavy tones that you’d expect but with more gain, volume, and tones available than you ever thought possible. The Moonshine V2 has the same core sound as the Moonshine Version 1 but we have added a new “Clean” knob to blend in the perfect amount of clean signal with your overdrive signal.

ANGRY CHARLIE ON THE LEFT

On the left side is our newest version of the Angry Charlie which is the Angry Charlie V3, one of our most popular pedals of the last few years. High gain JCM 800 type “Brown” sound tone that we believe is the most accurate Marshall tone ever put in a stompbox! It has Volume, Drive, and the full Bass, Mid, and Treble tone stack like you’d find on the amp. With the full tone stack and the amazingly accurate amp tones in this circuit, you’ll be begging for more!

FEATURES

The Sweet Tea V3 features our classic order switching toggle so that you can choose which circuit is first in the chain for the perfect stacking tones you’ve been searching for.

- Even more overdrive and distortion tones

- Fully independent Moonshine V2 and Angry Charlie V3 circuits

- Order toggle to select the order of effects when stacking

- Tons of control to dial in your perfect sound

With these tones combined or used separately, the Sweet Tea V3 is a gallon-and-a-half of overdrive that goes down easy on a summer night!

VERSION HISTORY

V1 = Slightly different icon, no toggles.

V2 =  Order Toggle and Gain Toggle added.

V3 = Updated Moonshine V2 on the right and Angry Charlie V3 on the left. Top-mount jacks.

THIS PEDAL REQUIRES STANDARD 9V DC CENTER NEGATIVE POWER, CONSUMES 51mA, AND MEASURES 4.7" x 3.7" x 1.66”

CONTROLS
LEFT SIDE - ANGRY CHARLIE V3
VOLUME - Controls the output volume. Left is less, right is more.
DRIVE - Controls the amount of drive or gain just like a tube amp being cranked at high volumes. Left is less,
right is more.

BASS - Controls the amount of bass. 50% is relatively flat, while turning it to the left decreases bass and to the
right increases bass

MIDS - Controls the amount of mids. 50% is relatively flat, while turning it to the left decreases mids and to the
right increases mids.

TREBLE - Controls the amount of treble. 50% is relatively flat, while turning it to the left decreases treble and
to the right increases treble.

RIGHT SIDE - MOONSHINE V2
VOLUME - Controls the output volume. Left is less, right is more.
DRIVE - Controls the amount of drive or gain just like a tube amp being cranked at high volumes. Left is less,
right is more.

TONE - Controls the amount of brightness. Right is brighter, left is darker.

BLEND - Adds in clean signal as you turn from left to right. All the way left is full overdrive, all the way right is
full clean.

ORDER TOGGLE - Toggle in the center between the controls for each side. The order toggle allows you
to select which circuit is first in the chain for different tones when stacking both sides. The toggle points to
whichever side is first in the chain. If switched to the right, the Moonshine is first. If switched to the left, the
Angry Charlie is first.

JACKS
INPUT - 1/4” jack on the top right side of the pedal.
OUTPUT - 1/4” jack on the top left side of the pedal.

SWITCHES
PROOF TOGGLE - Down is a lower volume yet more saturated tone. Up is louder and more open and
crunchy.

MOONSHINE BYPASS - Switch on the right engages the Moonshine.
ANGRY CHARLIE BYPASS - Switch on the left engages the Angry Charlie.

POWER - Uses 9V DC Negative Center. Do not use more than 9V DC. Your warranty will be voided. 81mA
consumption.
