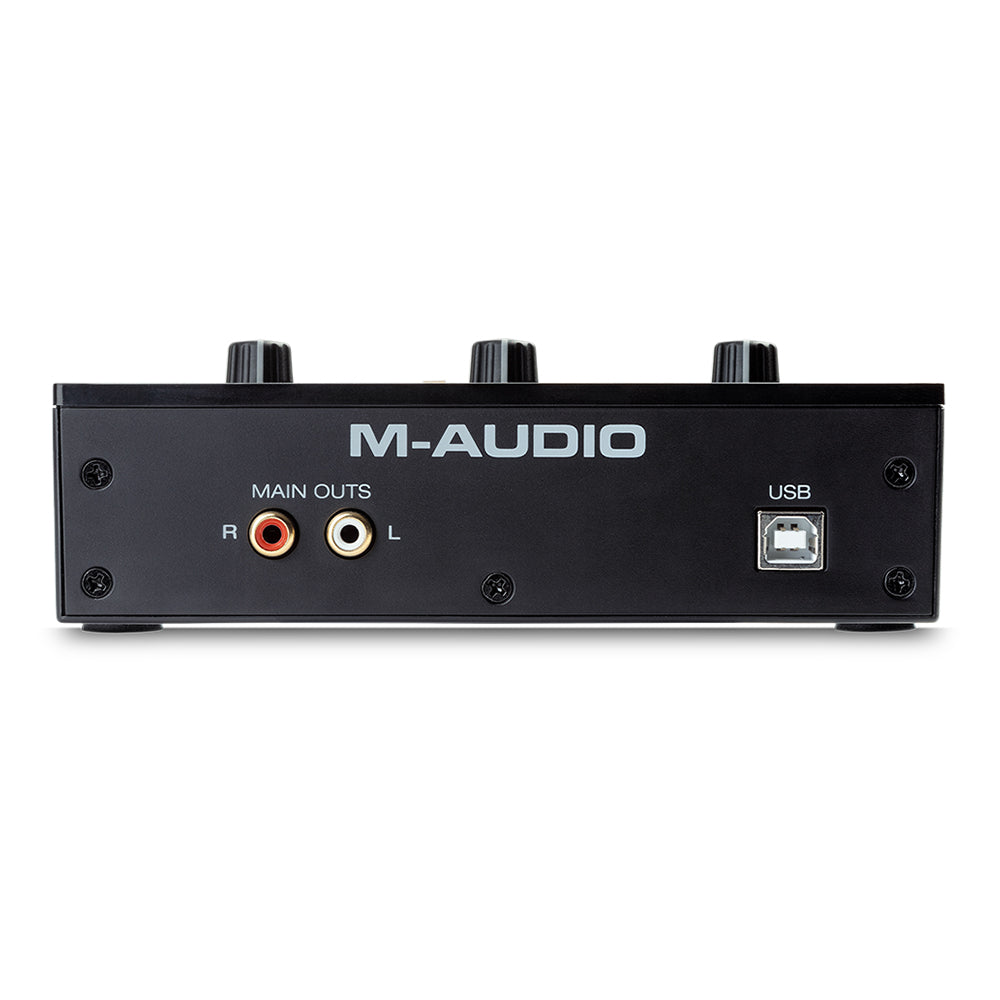

M-Audio M-Track Solo 2-in 2-out USB Audio Interface with 01 Mic Preamp
Crystal Clear Audio in a Compact Design
The M-Track Solo is the best, most portable recording interface in its class. It delivers 48 kHz audio resolution in a compact and easy to use format that is ideal for creating music on any Mac, PC or iOS device. This versatile interface works great for recording any type of sound source and features a single Combo Crystal Preamp with phantom power, plus a switchable Line / Instrument input making it compatible with any guitar or microphone. Plus, with M-Track Solo's 2-channel recording you can use both line inputs simultaneously to capture digital pianos, drum machines or any other stereo 1/4" device. M-track Solo is completely powered by USB, removing the need for an external power supply and making it perfectly portable for recording on-the-go. Throw it into your bag, grab a laptop, and create your next podcast, song, or mix anywhere you want!
Direct Monitoring & Headphone Connection
M-Track Solo offers zero-latency monitoring of the input signal through both the main RCA outputs and 1/8” headphone outputs. The USB/Direct switch adjusts the balance between the direct inputs and the playback from your computer software. This makes it easy to record new parts or add parts to an existing composition.
Start Recording Immediately
The M-Track Solo comes with a complete software package that has everything you need to get started right out of the box. Included is a great digital audio workstation (DAW)–MPC Beats. This DAW makes it easy and fun to create professional sounding podcasts, music, or beat productions on any Mac or PC.
20 effect plugins provided by AVID
But that’s not all! Included are some extra goodies to help out any podcaster, guitarist, or producer. First on the list are 20 effect plugins provided by AVID, the creators of Pro Tools. This exclusive and diverse collection delivers everything you need for creative production, mixing and mastering, including reverbs, equalizers, delays, filters and so much more.
World-Class Virtual Instrument Xpand!2
Next, is AIR Music Tech’s Xpand!2–an amazing sounding synthesizer plugin that you allows you to create synth, string, percussion, organ, and piano sounds with ease. Using everything from wavetables and FM synthesis to sample playback, the expert sound design team at Air Music Tech has carefully created thousands of ready-to-play Xpand!2 presets to get started and to learn how to create your own patches.
Turn Your Guitar up to Eleven!
Eleven Lite guitar amp plugin is also included which is perfect for capturing any riff that hits you in the middle of the night when you can’t crank your amp to ‘eleven’. With the choice of modern or vintage amps, cabs and sounds that bring you from beautiful cleans to modern hi-gain aggressiveness and everywhere in between, Eleven Lite will help you achieve the wall of sound your recordings need.
Crystal™ Preamps, Pristine A/D Converters and Premium Components
Our engineers designed Crystal Preamps to provide you with a transparent, low-noise preamp that guarantees the best sound from your microphones and captures your performance exactly the way you intended. The M-Track Solo incorporates pristine A/D converters for digital audio with explosive dynamic range that captures every nuance and subtlety of the performance.
Key Features
- 2-Channel USB recording interface for Mac and PC
- (1) Combo input with Crystal Preamp for amazing audio quality
- +48V phantom power for connecting studio condenser microphones
- Dedicated instrument input for guitar or bass
- Stereo line input for connecting digital piano, keyboard and more!
- 1/8” headphone and RCA stereo outputs provide easy monitoring
- USB/Direct switch for listening to the input signal or the computer signal
- Software bundle, including: MPC Beats, AIR Music Tech Xpand!2, Eleven Lite guitar amp plugin and 20 AVID plugin effects
Technical Specifications
Mic Input (balanced XLR) |
|
Frequency Response |
20 Hz – 20 kHz (+0.1 dB) |
Signal-to-Noise Ratio |
109 dB (A-weighted) |
THD+N |
0.003% (min. gain, 0 dBu out, A-weighted) |
Preamp EIN |
-128 dBu (max. gain, 40 Ω source, A-weighted) |
Gain Range |
0 dB to +54 dB |
Line Input (balanced 1/4" [6.35 mm] TRS) |
|
Frequency Response |
20 Hz – 20 kHz (+0.1 dB) |
Sensitivity |
-43 dBu |
THD+N |
0.002% (min. gain, 0 dBu out, A-weighted) |
Gain Range |
-10 dB to +44 dB |
Instrument Input (unbalanced 1/4" [6.35 mm] TS) |
|
Frequency Response |
20 Hz – 20 kHz (+0.1 dB) |
THD+N |
0.005% (min. gain, 0 dBu output, A-weighted) |
Input Impedance |
1 MΩ |
Gain Range |
-10 dB to +44 dB |
RCA Outputs |
|
Frequency Response |
20 Hz – 20 kHz (+0.1 dB) |
Signal-to-Noise Ratio |
109 dB (A-weighted) |
THD+N |
0.002% ( 0 dBu output, A-weighted) |
Max Output Level |
+4 dBu |
Headphone Output (1/8” [3.5 mm] TRS) |
|
Power |
60 mW/Ch, 32 Ω |
Frequency Response |
20 Hz – 20 kHz (+0.5 dB) |
THD+N |
0.02% (A-weighted) |
Signal-to-Noise Ratio |
100 dB (A-weighted) |
What’s In The Box
M-Track Solo
USB-B–to–USB-A Cable
Software Download Cards
User Guide
Safety & Warranty Manual
