Marshall

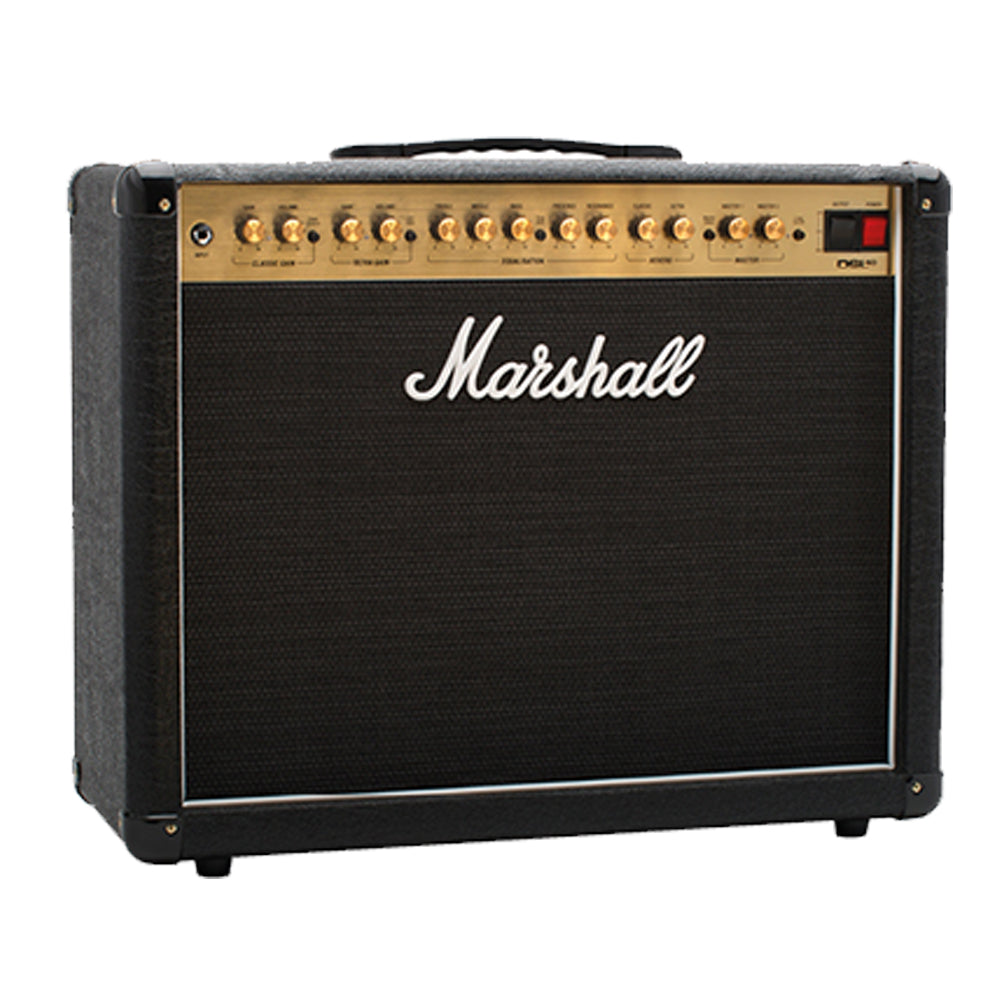

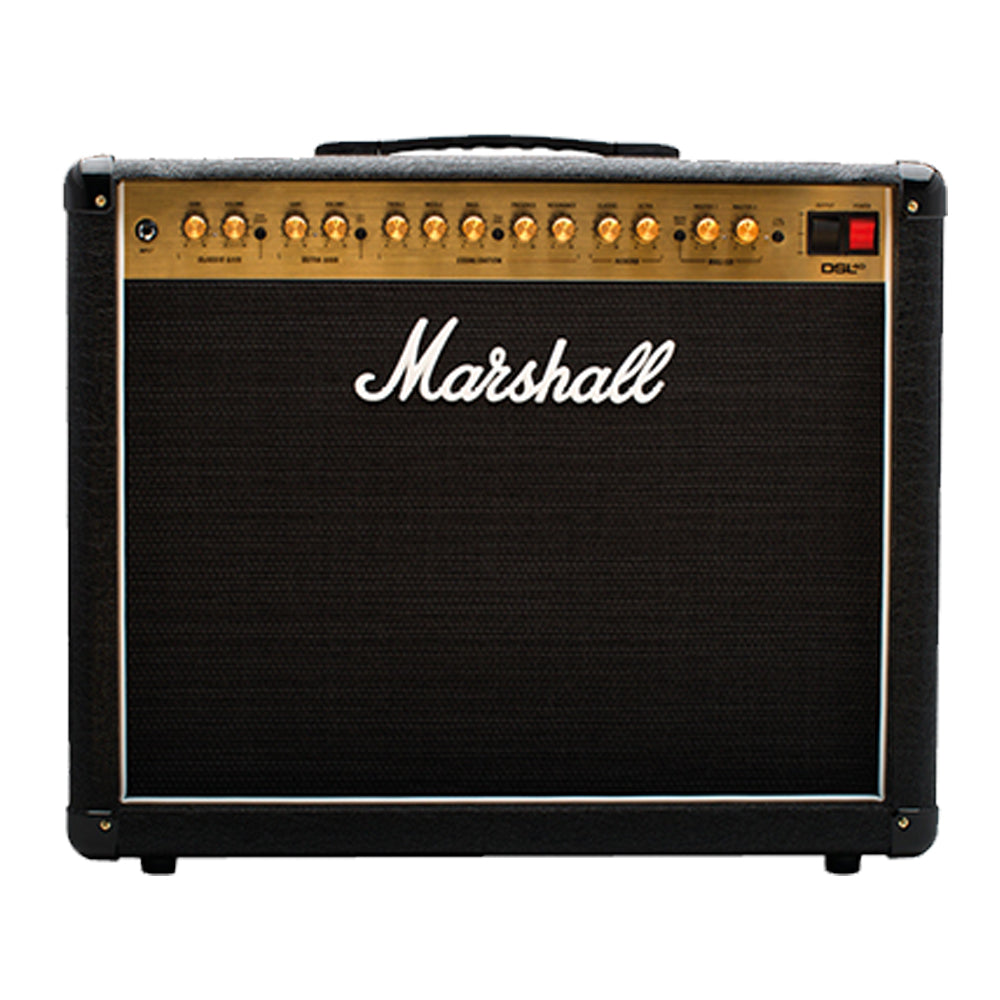

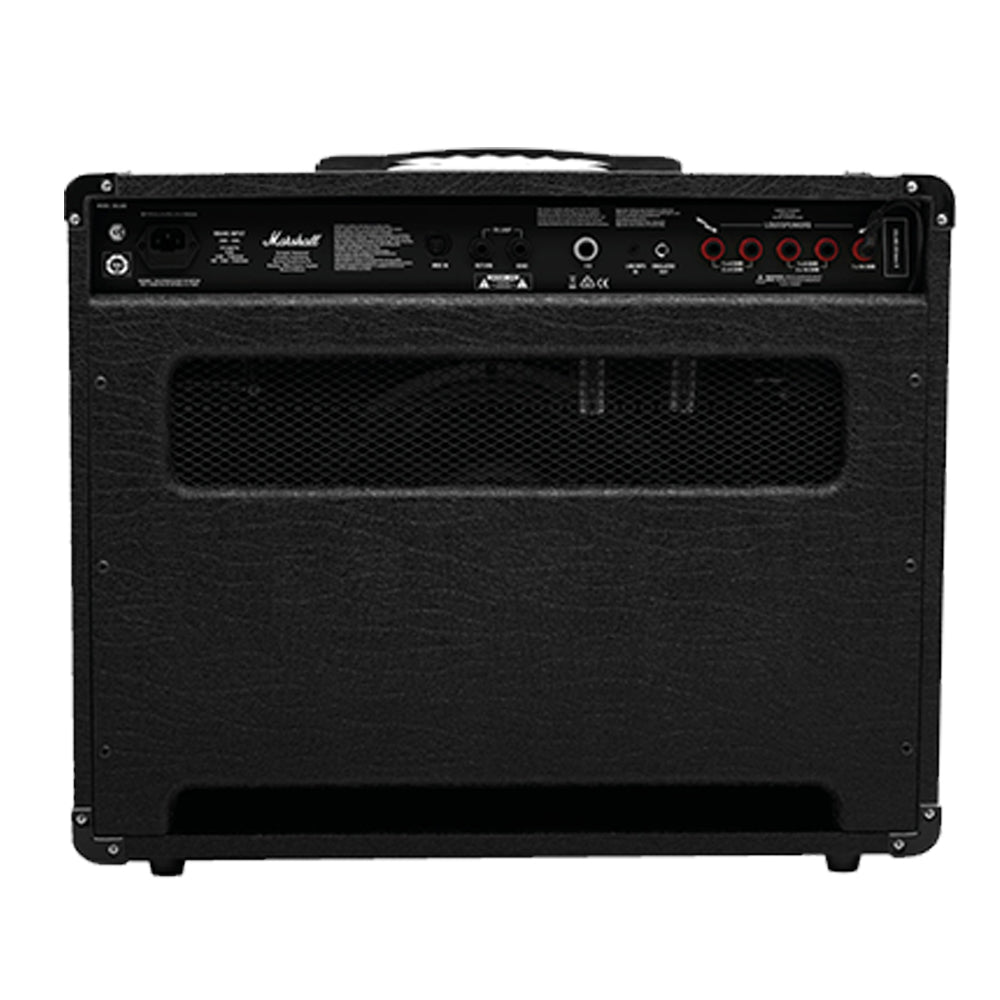

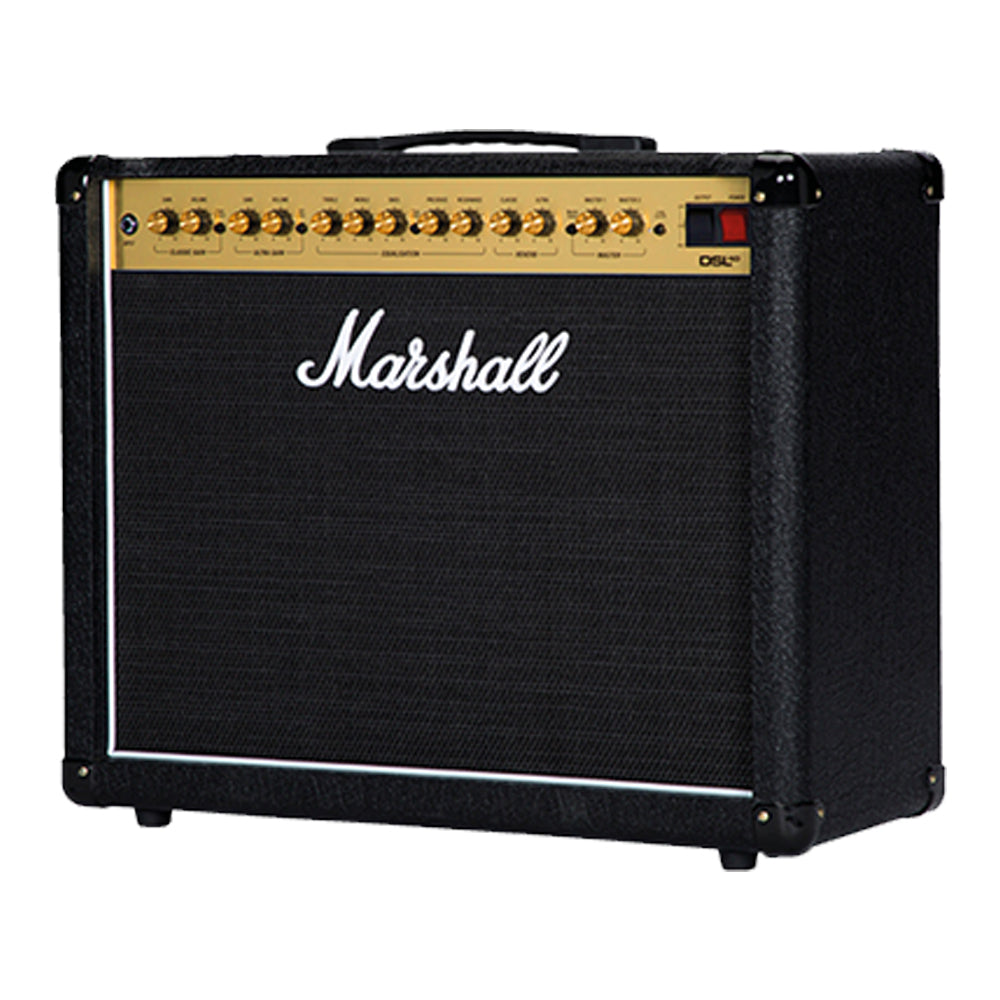

Marshall DSL40CR-E 40W Dual Channel Tube Guitar Combo Amplifier

Regular price RM3,020.00 MYR
Regular price Sale price RM3,020.00 MYR
Sale Sold out



TECHNICAL SPECIFICATION


GENERAL
Model
DSL40CR
Range
DSL
Technology
Valve
Channels
2 (Split) "Ultra gain" and "classic gain"

ELECTRONICS
Output wattage
40W (with power reduction option to 20W)
Outputs
Speaker outputs: 5 x 1/4" jack sockets (16Ω load / 8Ω load / 4Ω load), 1 x 1/4" jack emulated line out
Inputs
1 x 1/4" instrument jack, 1 x 3.5mm jack Aux in MIDI in, footswitch
Controls
Classic gain channel (gain, volume, clean crunch switch), ultra gain channel (gain, volume, OD1/OD2 switch), treble, middle, bass, tone shift switch, presence, resonance, reverb (classic gain channel), reverb (ultra gain channel), master select switch, master volume I, master volume II, loop on/off switch, low power option (on rear)
Effects
Digital reverb
Effects loop
Yes, series, send/return

SPEAKERS
Speaker configuration
1x12"
Speaker model
Celestion V-Type speaker (16Ω, 70w)
Unit impedance
16Ω

VALVES
Preamp valves
4 x ECC83
Power amp valves
2 x EL34

ACCESSORIES
Footswitch
PEDL-90012 included. Compatible with PEDL-91016 modes include: 1 - Clean (classic green) 2 - Crunch (classic red) 3 - OD1 (ultra green) 4 - OD2 (ultra red) 5 - Master 1/Master 2 (toggle) 6 - FX Loop on/off
Cable
Detachable power cable included
Dust cover
M-COVR-00116 (sold separately)

DIMENSIONS (INCLUDING FEET AND HANDLE)
Weight
22.9 kg / 50 lbs
Width
620 mm / 24.4"
Height
490 mm / 19.3"
Depth
252 mm / 9.9"
