Native Instruments

Native Instruments Traktor Scratch A6 Digital Vinyl System

RM1,415.00 MYR
or up to 3 interest-free payments of RM471.67 MYR with More info
RM1,415.00 MYR
Sale Sold out

DIGITAL HEART. VINYL SOUL.

  • Everything you need to kick off your DVS setup
  • Spin timecode vinyl, and mix your tracks in TRAKTOR or on an external mixer

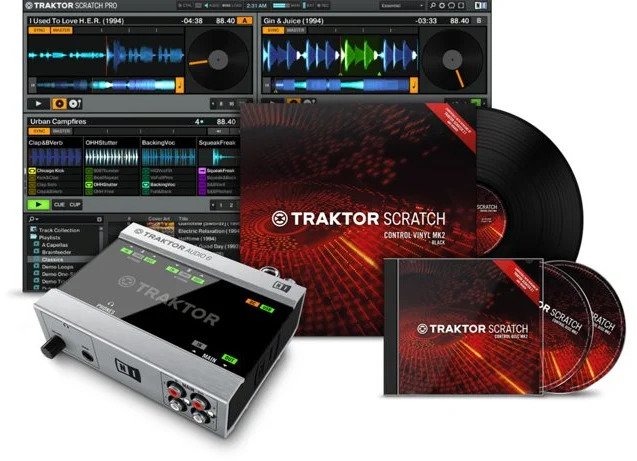

  • Includes TRAKTOR AUDIO 6 soundcard, timecode vinyl and CDs, and TRAKTOR PRO 3

TRAKTOR AUDIO 6 SOUNDCARD

The TRAKTOR AUDIO 6 forms the heart of your DVS setup – with two stereo inputs to connect your turntables, and two stereo outputs if you want to route each TRAKTOR deck to a mixer. There’s also a main stereo output if you’re mixing everything within TRAKTOR, and a main stereo input you can use for anything you like. For full-on setup configuration, each input and output can also be independently assigned.

SYSTEM REQUIREMENTS

macOS 10.13, 10.14, 10.15, 11, 12 (latest update), iTunes 12 (latest update), Intel Core i5 or Apple M1 (with Rosetta 2), 4 GB RAM

Windows 10, 11 (latest service pack), Intel Core i5 or equivalent CPU, 4 GB RAM

Note: You may encounter issues using TRAKTOR on the MacBook M1 Max/ Pro, due to complications with the new Apple M1 chips. We are working hard to resolve this and guarantee full compatibility as soon as possible.

SUPPORTED AUDIO FORMATS

MP3, WAV, AIFF, Audio-CD, FLAC, Ogg Vorbis, non-DRM AAC

SUPPORTED DRIVERS

  • ASIO
  • Core Audio
  • DirectSound
  • WASAPI

GENERAL

Monitor with 1280 x 800 screen resolution, USB 2.0, 1 GB free disc space. An internet connection and a graphics card which supports OpenGL 2.1 or higher are required to download and activate TRAKTOR software. Once installed and activated, all products can be used offline.

AUDIO INTERFACE DIMENSIONS

44 x 137 x 134 mm / 1.7 x 5.4 x 5.3”
Weight: 750g / 1,65 lbs

HARDWARE SPECIFICATIONS

Audio Converters
Channels (A/D, D/A) 6, 6
Sample Rates 44.1, 48, 88.2, 96 kHz
Bit Resolution 16, 24 Bit
Converter Cirrus Logic
Line Inputs
Input Impedance 47 kOhm
A/D-D/A to Output:
Full Scale Input Level +12 dBu, 3.08 Vrms
Gain -2.6 dB
Dynamic Range 98.9 dB (A)
THD+N (Full Scale Level) 0.018 %
Frequency Response (96 kHz), -1 dB 13 Hz - 45 kHz
Direct Thru:
Maximum Input Level +13.35 dBu, 3.6 Vrms
Gain -4.55 dB
Dynamic Range 107.8 dB (A)
THD+N (Maximum Level) 0.0027 %
Frequency Response, -1 dB 13 Hz - 73 kHz
Phono Inputs
Input Impedance 47 kOhm
A/D-D/A to Output:
Full Scale Input Level @ 1 kHz -22.2 dBu, 60 mVrms
Gain @ 1 kHz +31.5 dB
Dynamic Range @ 1 kHz 95.8 dB (A)
THD+N @ 1 KHz 0.02 %
Frequency Response IEC curve +/- 1 dB
Direct Thru:
Maximum Input Level @ 1 kHz -16.2 dBu, 120 mVrms
Gain @ 1 kHz +29.1 dB
Dynamic Range @ 1 kHz 96.9 dB (A)
THD+N @ 1 kHz 0.01 %
Frequency Response IEC curve +/- 1 dB
Line Outputs (D/A)
Full Scale Output Level +9.6 dBu, 2.35 Vrms
Dynamic Range 101.8 dB (A)
THD+N 0.008 %
Frequency Response (96 kHz), -1 dB 9 Hz - 45 kHz
Headphone Output
Maximum Output Level @ 10 kOhm 11.3 dBu, 3.55 Vrms
Maximum Output Power 20 mW @ 100 Ohms, 11 mW @ 33 Ohms
THD+N (Maximum Level, 100 Ohms) 0.011 %
Frequency Response (96 kHz), -1 dB 9 Hz - 45 kHz
