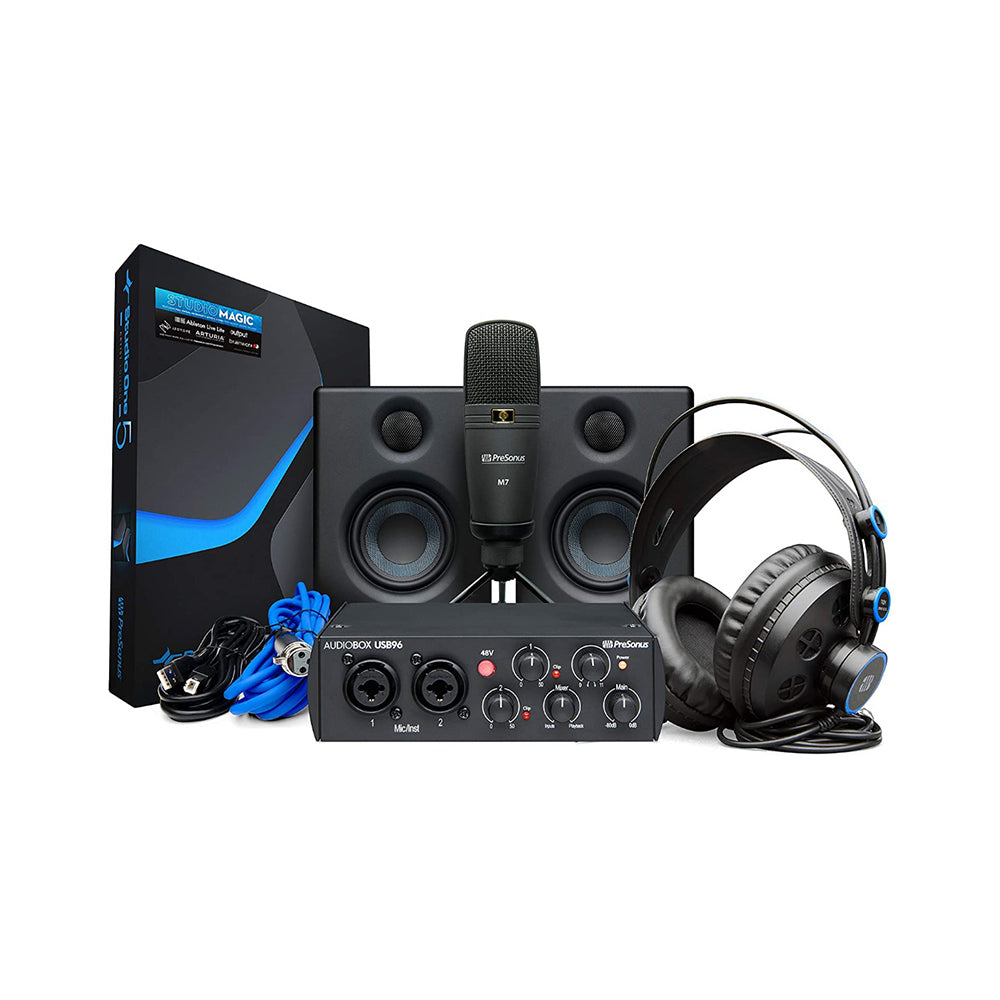

PreSonus AudioBox 96 Ultimate Hardware & Software Recording Bundle – 25th Anniversary Edition
Produce and record like a pro with a single-purchase bundle! The core of this package is the AudioBox USB 96 audio/MIDI interface 25th Anniversary matte black and award-winning Studio One recording and production software. You also get PreSonus’ best-selling Eris E3.5 Active Media Reference Monitors and HD7 headphones, allowing you to monitor your work loud and proud or quietly to yourself. Lastly, the M7 dynamic microphone is a superior all-purpose condenser mic ideal for guitar and vocals—and we even included all the necessary cables and a desktop mic stand.
AudioBox USB 96 25th Anniversary (Matte Black)
- Bus-powered USB audio and MIDI interface
- Perfect match with Studio One Artist software for Mac and Windows
- 24-bit resolution, 44.1, 48, 88.1, and 96 kHz sampling rate
- 2 combo mic/instrument inputs with Class A mic preamplifiers
- 48V phantom power (for included M7 microphone or other condenser microphones)
- Zero-latency monitoring via internal analog mixer
- Headphone jack with level control (for included HD7 headphones or other headphones)
- 1/3U rack-mountable
- Computer-to-interface connection cable included
Studio One Artist software
- Elegant single-window work environment
- Powerful drag-and-drop functionality
- Unlimited audio tracks, MIDI tracks, virtual instruments, buses, and FX channels
- Content browser with convenient sort options and preview player
- Most intuitive MIDI-mapping system available
- Real-time audio time-stretching and resampling
- Multitrack comping and MIDI editing
- Transient detection and editing and groove extraction
- Automatic delay compensation
- Advanced automation
- Integrates tightly with Celemony Melodyne
- Instantly configures to PreSonus interfaces
- Compatible with ASIO-, Windows Audio-, and Core Audio-compliant interfaces
- 26 Native Effects 32-bit effects and virtual instrument plug-ins
- 10+ GB of third-party software, loops, and instruments
- Mac- and Windows-compatible
M7 Microphone
- Large-diaphragm design
- Captures far more detail than a dynamic mic
- Mic stand adaptor
- Phantom-powered via AudioBox USB
- 9′ / 3 m cable included
- Cloth carry bag included
HD7 Headphones
- High neodymium resolution drivers
- Precision-tuned acoustic chamber
- Extended bass response
- Built tough to withstand abuse
- Auto-fit head pads
- Comfortable and long-lasting ear pads
- 98″ / 2.5m single-side cable
- Optimized pressure
- Lightweight
Eris E3.5 Active Media Reference Monitors
- 3.5-inch (89 mm) woven composite low-frequency transducer
- 1-inch (25 mm), ultra-low-mass, silk-dome, high-frequency transducer
- Rear-firing acoustic port for superior bass-frequency reproduction
- Optimized, resonance-suppressing internal bracing
- High- and low-frequency tuning controls
- Front-panel Volume control for speakers and headphone amplifier
- 50 watt (25W/side), Class AB biamplification
- RF interference, output current limiting, over-temperature, transient, and subsonic protection
- Amplifier “soft start” feature eliminates popping on power-up
- Internal power supply with IEC connector
- Power switch with on/off LED
- Balanced ¼-inch TRS, unbalanced 1/8-inch stereo, and RCA inputs
- Integrated stereo headphone amplifier with front-panel 1/8-inch output
Studio One is a modern, cross-platform DAW that is capable of operating as a 32-bit or 64-bit application. While we make every effort to ensure Studio One will run well on the widest variety of computers possible, please read these specifications carefully to determine compatibility with your system.
Below are the minimum computer-system requirements for Studio One.
Mac
- macOS 10.11 or higher (64-bit only) or later
- Intel Core Duo processor (Intel Core 2 Duo or Intel Core i3 or better recommended)
- 2 GB RAM (4 GB or more recommended)
Windows
- Windows 7x 64/x86 SP1 or Windows 8/8.1 x64/x86 or Windows 10 x64/x86
- Intel Core 2 processor (Intel Core i3 processor or better recommended)
- 4 GB RAM (8 GB or more recommended)
Windows and Mac Systems
- USB 2.0 Port
- Internet connection (for activation)
- Monitor with at least 1024×768 resolution
- 20 GB hard-disk space
- Internal or external 7200 RPM storage drive highly recommended
The minimum system requirements may differ for DAWs other than Studio One. Please check the requirements for your DAW of choice with its manufacturer.
Note that the speed of your processor, amount of RAM and size and speed of your hard drive will greatly affect the overall performance of your recording system. Also, a more powerful system (faster processor with more RAM) will allow for lower latency (signal delay) than you might experience while monitoring audio or MIDI signals. Monitor resolution for both PC and Macintosh should be no lower than 1024×768 pixels.
AudioBox USB 96 Specifications | |
Microphone Preamp | |
Type | XLR Female Balanced |
Frequency Response (±3.0 dB) | 20 Hz to 20 kHz |
Input Impedance (Balanced) | 1200Ω |
THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain) | < 0.008% |
S/N Ratio (Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz) | > 95 dB |
Common Mode Rejection Ratio (1 kHz, 55 dB Gain) | > 45 dB |
Gain Control Range (± 1 dB) | 0 dB to 35 dB |
Max Input Level (Unity Gain, 1 kHz @ 0.5% THD+N) | -3 dBu |
Phantom Power (±2 VDC) | +48 VDC |
Instrument Input | |
Type | ¼” |
TRS Female Unbalanced Input Impedance | 0.5 MΩ |
Line Outputs | |
Type | ¼” |
Balanced Output Impedance | 51Ω |
Headphone Output | |
Type | ¼” TRS Active Stereo |
Maximum Output | 60 mW/Ch @ 60Ω Load |
Frequency Response (±1.0 dB) | 20 Hz – 30 kHz |
MIDI I/O | |
Type | Dual 5-pin Female DIN |
Digital Audio | |
ADC Dynamic Range (A-wtd, 48 kHz Sample Rate) | 105 dB |
DAC Dynamic Range (A-wtd, 48 kHz Sample Rate) | 105 dB |
Bit Depth | 24 |
Reference Level for 0 dBFS | +4 dBu |
Internal Sample Frequency Selections (kHz) | 44.1, 48, 88.2, 96 |
Power | USB 2.0 Bus-powered |
Physical | |
Dimensions | 1/3U (steel chassis) |
Height | 5.5” (139.7 mm) |
Depth | 1.75″ (44.45 mm) |
Width | 5.5” (139.7 mm) |
Weight | 1.4 lbs (0.64 kg) |
M7 Microphone Specifications | |
General | |
Type | Large-diaphragm condenser microphone |
Element | Electret |
Polar Pattern | Cardioid |
Frequency Response | 40 Hz – 18 kHz |
Sensitivity | -39 dBV/pa (12.2 mV/pa) |
Rated Impedance | 200Ω |
Equivalent Input Noise (EIN) | 20 dB |
Maximum SPL | 136 dB SPL |
Phantom Power Required | +12 to +52 VDC, 3 mA |
S/N Ratio | 74 dB |
Dynamic Range | 11 dB |
Current Consumption | 3.5 mA |
Physical | |
Diameter | 2.13″ (54 mm), maximum |
Length | 6.69″ (170 mm) |
Weight | 11.3 oz. (320g) |
HD7 Headphone Specifications | |
General | |
Acoustic Design | Dynamic, semi-open |
Driver | 50 mm, neodymium |
Frequency Response | 10 Hz to 30 kHz |
Sensitivity | 98 dB SPL (1 mW) |
Maximum Power | 300 mW |
Rated Impedance | 56Ω |
Earpad | Leather |
Physical | |
Weight, without Cable | 7.8 oz (222g) |
Cable | 8′ 2″ (2.5m) straight, single-sided |
Plug Adapter | 1/8″ to 1/4″ (3.5 to 6.3 mm), screw-on, gold-plated, stereo mini-plug |
Eris E3.5 Active Media Reference Monitors | |
Inputs | 1- Stereo 1/8″ |
2- Balanced ¼” TRS | |
2- Unbalanced RCA | |
Performance | |
Frequency Response | 80 Hz – 20 kHz |
Crossover Frequency | 2.8 kHz |
Amplifier Power | 25W/speaker |
LF Driver | 3.5″ |
HF Driver | 1” silk dome |
Peak SPL (@ 1 meter) | 100 dB |
Input Impedance | 10 kΩ |
User Controls | |
Volume Range | A-type taper |
MF Control | Variable (-6 to +6 dB, center 100 Hz) |
HF Control | Variable (-6 to +6 dB, center 10 kHz) |
Protection | |
RF interference | |
Output-current limiting | |
Over-temperature | |
Turn-on/off transient | |
Subsonic filter | |
External mains fuse | |
Power | |
100-120V ~50/60 Hz or 220-240V ~50/60 Hz | |
Cabinet | |
Vinyl-laminated, medium-density fiberboard | |
Physical | |
Width | 5.6″ (141 mm) |
Depth | 6.4″ (162 mm) |
Height | 8.3″ (210 mm) |
Weight (per pair) | 6.4 lb. (2.9 kg) |
