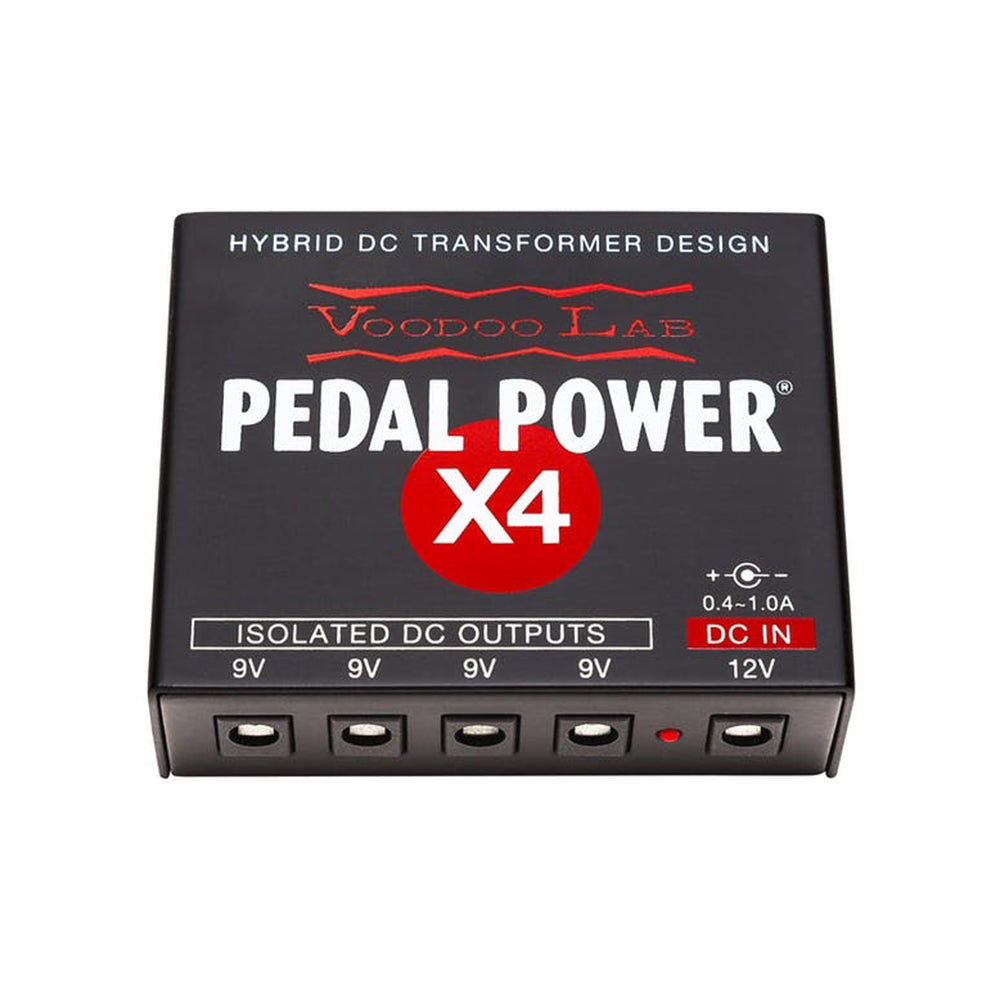

Voodoo Lab Pedal Power X4
Pedal Power X4 is a professional isolated power supply for both battery operated and high current DSP effects. Its ultra-compact size fits even the smallest pedalboards – including Voodoo Lab Dingbat TINY and Pedaltrain Nano – and operates at any mains voltage for international touring. X4's innovative hybrid DC transformer design incorporates exotic components, linear regulation, and computer optimized filtering to establish industry-leading audiophile quality power that unveils the hidden sonic potential of your rig.
As well as delivering the cleanest, most reliable power for small pedalboards, Pedal Power X4 shines as a supplementary power supply in an expanding rig. Powering directly from any 12V 400mA output or X-Link port, X4 adds four isolated outputs to an existing Pedal Power. X4 can also power from the AC courtesy outlet of a Pedal Power 2 PLUS, significantly upgrading both its isolated output capacity and high current capability.
|Pedal Power X4® features & benefits:|
Four isolated 9V outputs
Ultra-compact design easily mounts to the smallest pedalboards
Powers battery operated and high current DSP effects
Innovative DC transformer topology sets new standards in power supply performance
Advanced filtering and linear regulation ensure noise-free audiophile-quality power
Supplies a total of 1000mA using included AC adapter (500max per output)
X4 also powers from any 12V 400mA Pedal Power output, supplying up to 400mA of current
Includes Universal input voltage power adapter, power cables, and 3M Dual Lock for mounting
The Voodoo Lab Pedal Power X4 provides four isolated 9V outputs capable of
properly powering battery operated pedals, high current DSP effects, and even
the most sensitive vintage circuits with no added noise and optimum tone.
A novel DC transformer design combines traditional analog linear voltage
regulation with state-of-the-art organic polymer and ceramic capacitor filters to
achieve best in class performance.

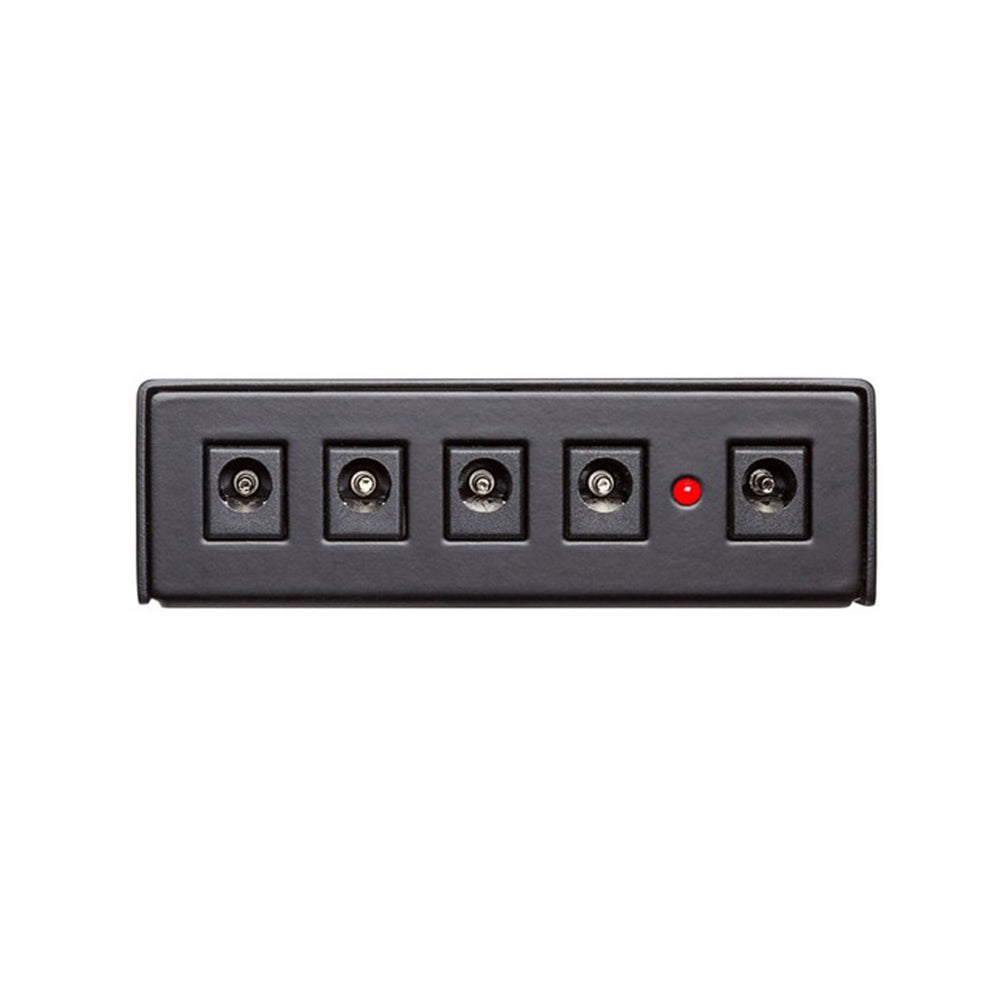

1) Connect to a regulated 12VDC power source. Use either the supplied 1000mA
power adapter or any 12V 400mA output from a Voodoo Lab Pedal Power.
2) LED status indicator. Steady ON during normal operation.
3) Isolated 9VDC outputs. Each output can provide up to 500mA. Total current
not to exceed the power source maximum (400-1000mA).
