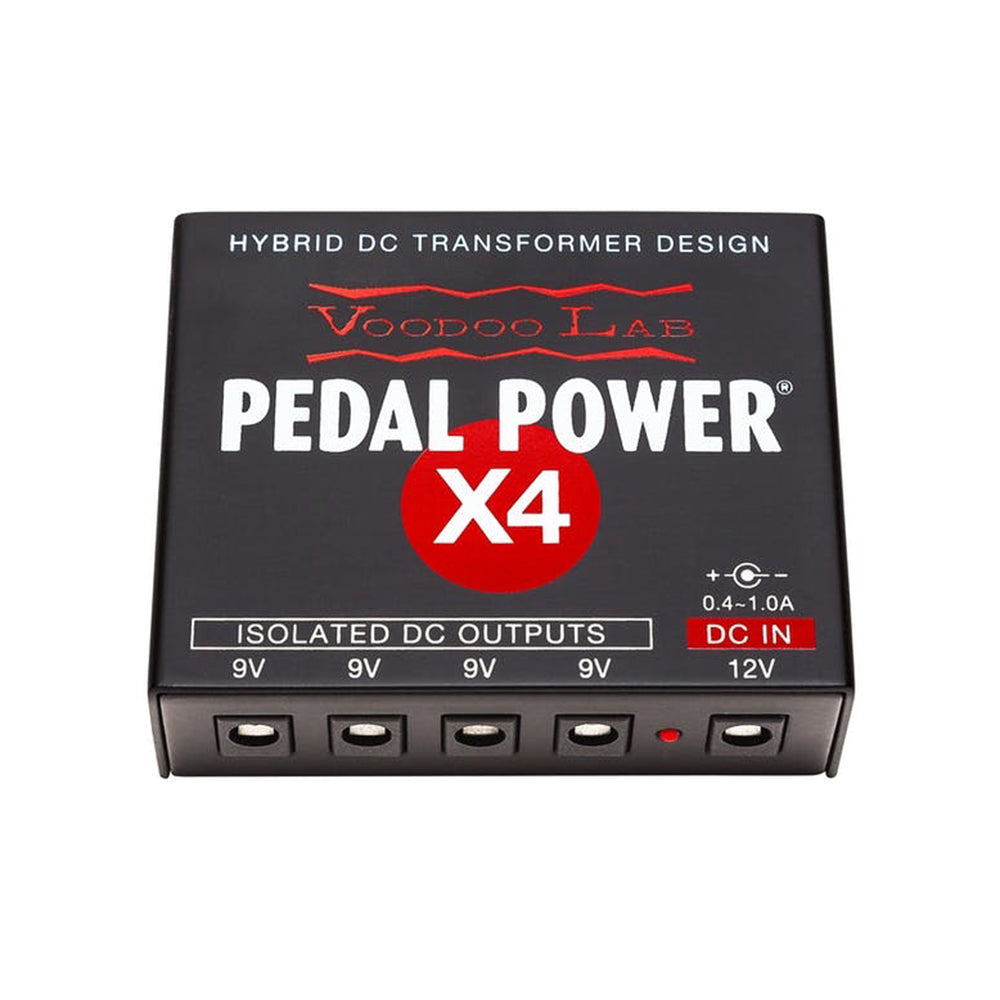

Voodoo Lab Pedal Power X4 Expander Kit

Pedal Power X4 Expander Kit adds four isolated 9V DC outputs to compatible Voodoo Lab® power supplies. Its ultra-compact size makes adding on to your existing system quick and easy, mounting to the even most space-challenged pedalboards. The innovative hybrid DC transformer design of Pedal Power X4 combines exotic components, linear regulation, and computer optimized filtering to establish industry-leading audiophile quality power that unveils the hidden sonic potential of your rig.

Adds 4 isolated 9V DC outputs to compatible Pedal Power
Compatible with Pedal Power 3, ISO-5, Digital, 4X4, and MONDO
Powers from any Pedal Power X-Link or 12V 400mA output
Delivers up to 1000mA via Pedal Power 3 X-Link expansion port (500mA max per output)
Ultra-compact, lightweight design for easy mounting to any pedalboard
Advanced filtering and linear regulation ensure noise-free audiophile-quality performance
Includes power cables and 3M Dual Lock for mounting
Product Dimensions: 3.38” x 2.75” x 1” (86 x 70 x 25 mm)
Product Weight: 4 ounces (0.11 kg)
Hand-built in the U.S.A.

PEDAL POWER X4 EXPANDER KIT
OVERVIEW
The Voodoo Lab Pedal Power X4 provides four isolated 9V outputs capable of
properly powering battery operated pedals, high current DSP effects, and even
the most sensitive vintage circuits with no added noise and optimum tone.
A novel DC transformer design combines traditional analog linear voltage
regulation with state-of-the-art organic polymer and ceramic capacitor filters to
achieve best in class performance.

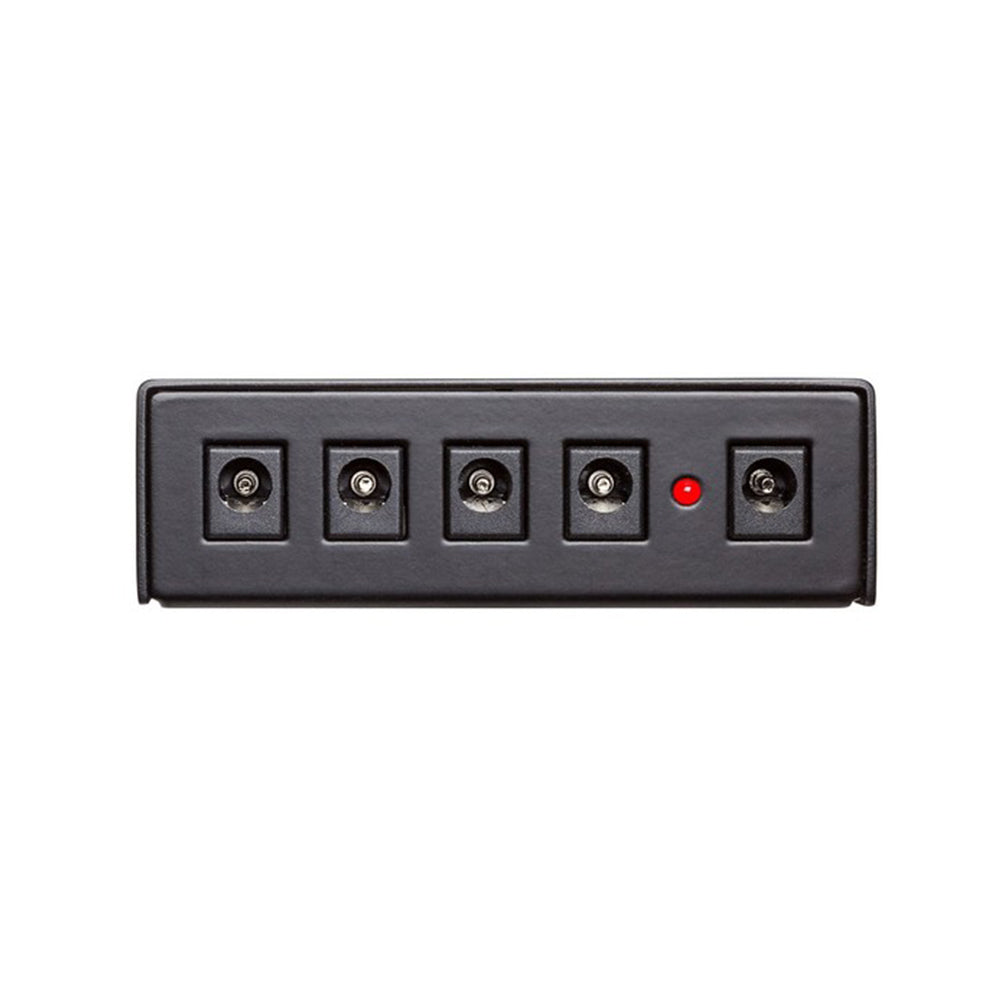

CONNECTIONS

1) Connect to a regulated 12VDC power source. Use any 12V 400mA output
from Voodoo Lab Pedal Power models ISO-5, Digital, 4X4 and MONDO; or the
X-LINK outs on Pedal Power 3.
2) LED status indicator. Steady ON during normal operation.
3) Isolated 9VDC outputs. Each output can provide up to 500mA. Total current
not to exceed the power source maximum (400-1000mA).
